YOUYI YY-D-400-5 5V80A 400W LED Power Supply
YOUYI YY-D-400-5 5V80A 400W LED Power Supply Supply Features:
- Toshiba high voltage MOS tube, with high pressure resistance, and good switching performance.
- Provide over-voltage protection, over-current protection, over-temperature protection short circuit protection, overload protection. When the protection mechanism is triggered, the power is automatically turned off, and after the fault is removed, the power supply is resumed.
- Fan can automatically adjust the speed according to the power supply temperature, when the temperature is low or do not turn vulgar, when the temperature is high when the high-speed rotation.
YOUYI YY-D-400-5 5V80A 400W LED Power Supply Parameter:
|
Model |
YY-D-400-5 |
|
|
Output |
Output Voltage |
5V |
|
Max Current |
80A |
|
|
Current Range |
0～60A |
|
|
Max Power |
400W |
|
|
Ripple and noise |
100mV |
|
|
Voltage adjustment range |
±1% |
|
|
Voltage tolerance |
±0.2% |
|
|
Linear adjustment rate |
±0.5% |
|
|
Load regulation |
±2.0% |
|
|
Start Time |
50mS |
|
|
Hold time |
20mS |
|
|
Input |
voltage range |
200V～240V |
|
Frequency Range |
47Hz～63Hz |
|
|
Effectiveness |
86% |
|
|
Inrush current |
≤40A |
|
|
Leakage current |
≤2.0mA |
|
|
Protection |
Overload |
Over Max Power of 110% to 150% |
|
|
|
|
|
Over temperature |
95℃±5℃ |
|
|
Cooling mode |
Fan forced cooling |
|
|
Enviroment |
Operating temperature |
—30℃～+60℃ |
|
Working humidity |
20～90%RH,No condensation |
|
|
Storage temperature, humidity |
—40℃～+80℃,10～95%RH |
|
|
Temperature Coefficient |
±0.03%/℃（0～50℃） |
|
|
Resistant to vibration |
10-300MHz,1G,10Minute / period, |
|
|
X.Y.Z axis for 60 minutes each. |
||
|
Safity |
Safety Standard |
Accord to GB4943、UL60950、EN60950 |
|
EMC Standard |
Accord to GB9254、EN55022A |
|
|
Pressure resistance |
I/P-O/P:3KVAC/3mA/1min |
|
|
I/P-FG:1.5KVAC/3mA/1min |
||
|
O/P-FG:0.5KVAC/3mA/1min |
||
|
Isolation resistance |
I/P-O/P:50MΩmin/500VDC |
|
|
Certified |
CQC/ CE/ CB/ ROHS/CCC |
|
|
Other |
Dimensions |
212*85*30mm |

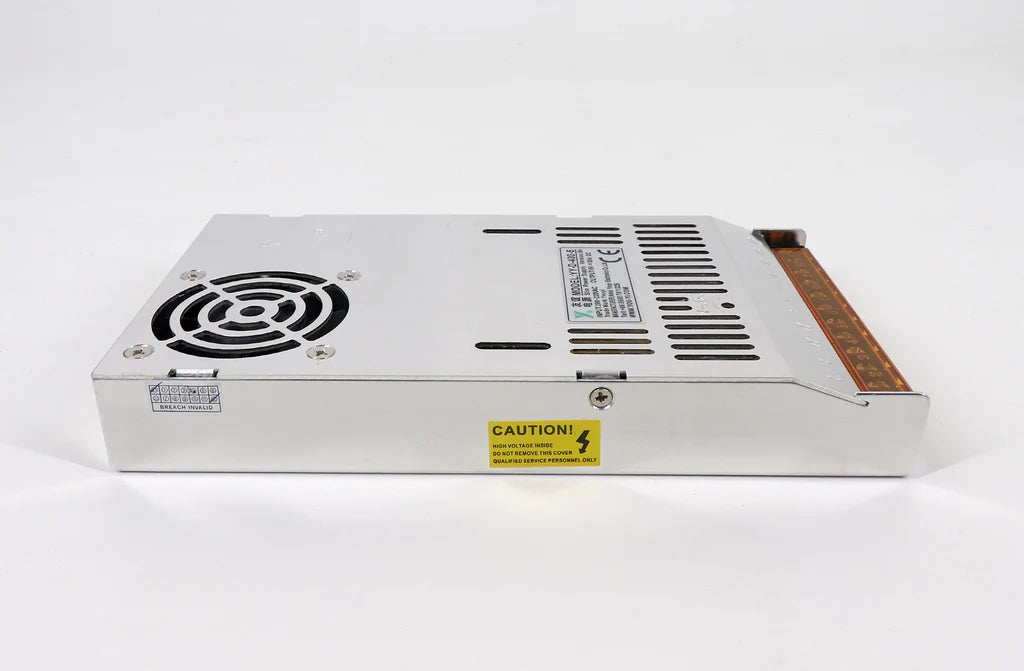

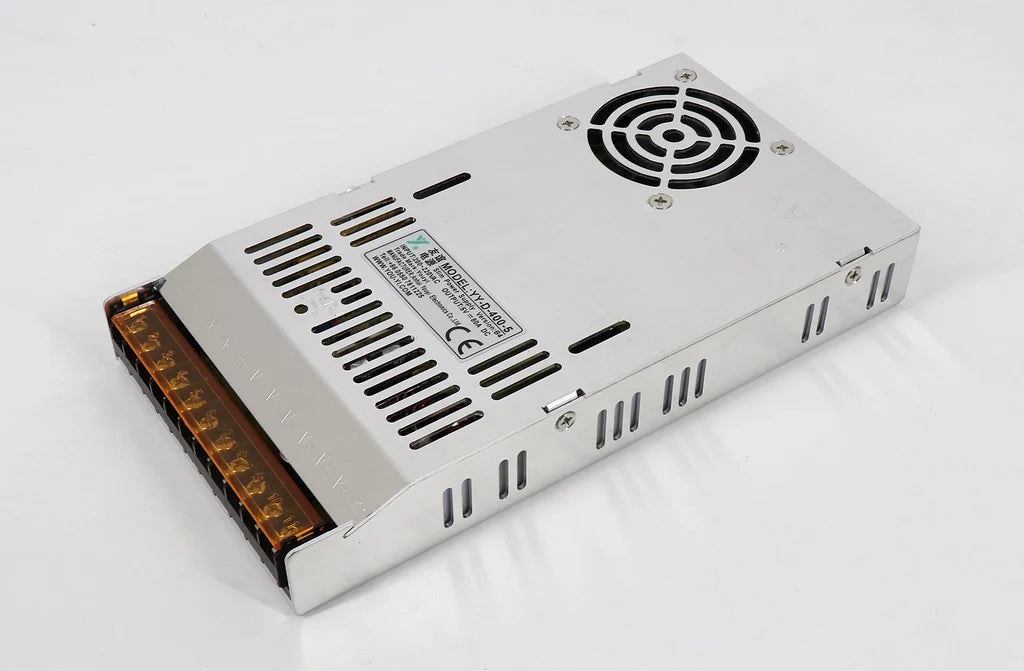

More Pictures of YOUYI YY-D-400-5 5V80A 400W LED Power Supply
Download Specification
YOUYI YY-D-400-5 5V80A 400W LED Power Supply
