VDWALL LVP7000 Multi-window LED video wall processor
Brand: VDWall
Product Code: VDWALL-LVP7000
Availability: In stock
Features of VDWALL LVP7000 Multi-window LED video wall processor:
1.Highly integrated video processor with varieties of advanced image.processing technologies:Seamless switching, Sync-output cropped images, Multi-window display by image overlay etc
2.Supports SD and HD, Analog and Digital Video Inputs:
4×CVBS 4×VGA
4xDVI（HDMI） 4×SDI（SD-SDI / HD-SDI / 3G-SDI）
3.Per pixel Motion Adaptive De-interlacing processing by Faroudja DCDi
4.8 DVI Outputs, Each one has the resolution up to 1920 x 1200_60Hz
5.Output width up to 20480 pixels or output height up to 9600 lines by one LVP7000
6.Device Aided calculation of the cropped image’s size and position
7.Fully CrossPoint high bandwidth video switching
8.Ture seamless switching and Fade-in/Fade-out switching to any one of input signals
9.Backup or Restore the device settings and adjustment data by a PC
10.24/7 Application, stable and reliable
Rental Performance,special-shaped or ultra-large LED display,mixed displays(with different poxel pitch),Stage Entertainment & Theater,High-end Meetings& Exhibitions etc.
VDWALL LVP7000 Multi-window LED video wall processor Specification:
|
Input signal index |
||
|
Type/Quantity |
4×CVBS |
|
|
4×VGA（RGBHV） |
||
|
4×DVI（VESA/ CEA-861） |
||
|
4×SDI（SDI/HD-SDI/3G-SDI） |
||
|
Video standard |
PAL/NTSC |
|
|
Composite Video |
1V（p_p）/ 75Ω |
|
|
|
||
|
Scope/Impedance |
||
|
VGA format |
PC（VESA） |
≤1920×1200_60Hz |
|
VGA Scope/Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|
|
DVI format |
PC（VESA） |
≤1920×1200_60Hz |
|
HDMI-1.3（CEA-861） |
≤1920×1080_60Hz |
|
|
SDI format |
SMPTE 259M |
480i_60Hz |
|
|
|
|
|
SMPTE 292M |
576i_50Hz |
|
|
|
|
|
|
|
720p、 |
|
|
|
|
|
|
|
1080i、 |
|
|
|
|
|
|
|
1080p |
|
|
Input port |
CVBS：VGA socket P4 |
|
|
VGA：15pin D_Sub(female) |
||
|
DVI：24+1 DVI_D |
||
|
SDI：BNC/ 75Ω |
||
|
Output signal index |
||
|
Type/Quantity |
8×DVI |
|
|
Preview output |
1×DVI(one channel |
|
|
|
||
|
of Out_K or Out_L is optional |
||
|
|
||
|
as preview output) |
||
|
DVI resolution |
1024×768_60Hz |
|
|
|
||
|
1280×1024_60Hz |
||
|
|
||
|
1920×1080p_60Hz |
||
|
|
||
|
1920×1200_60Hz |
||
|
Output port |
DVI：24+1 DVI_D |
|
|
Others |
||
|
Control port |
RS232/USB/LAN |
|
|
Input Voltage |
100-240VAC 50/60Hz |
|
|
Maximum power consumption |
≤80W |
|
|
Operating Temp |
0-45 ℃ |
|
|
Humidity |
15-85% |
|
|
Dimensions（Product） |
482.6(length) x 300(width) |
|
|
|
||
|
x 89(height)mm |
||
|
Dimensions（Package） |
540(length) x 400(width) |
|
|
|
||
|
x 180(height)mm |
||
|
Weight（N.W.） |
6Kg |
|
|
Weight（G.W.） |
9Kg |
|

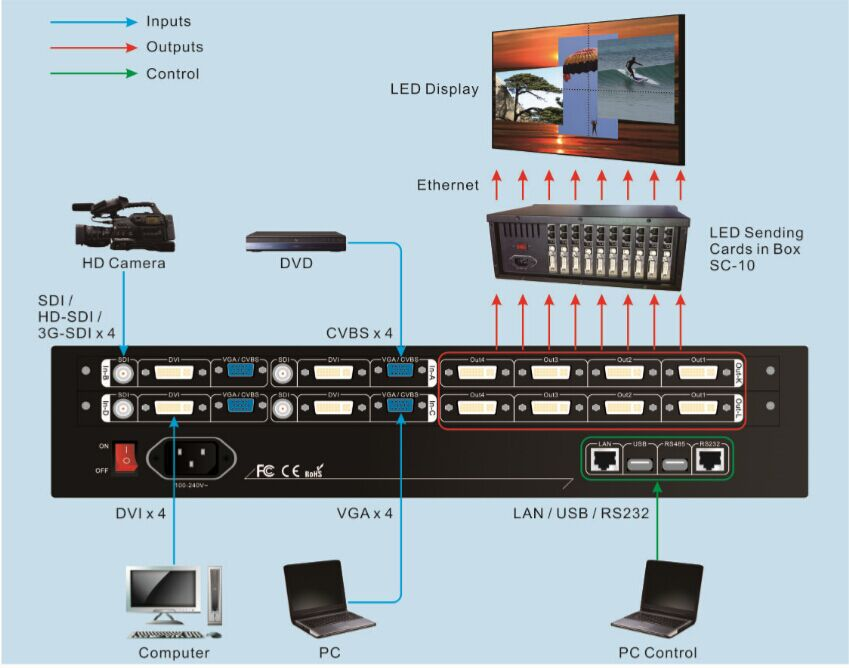

- LVP7000 connection diagram:

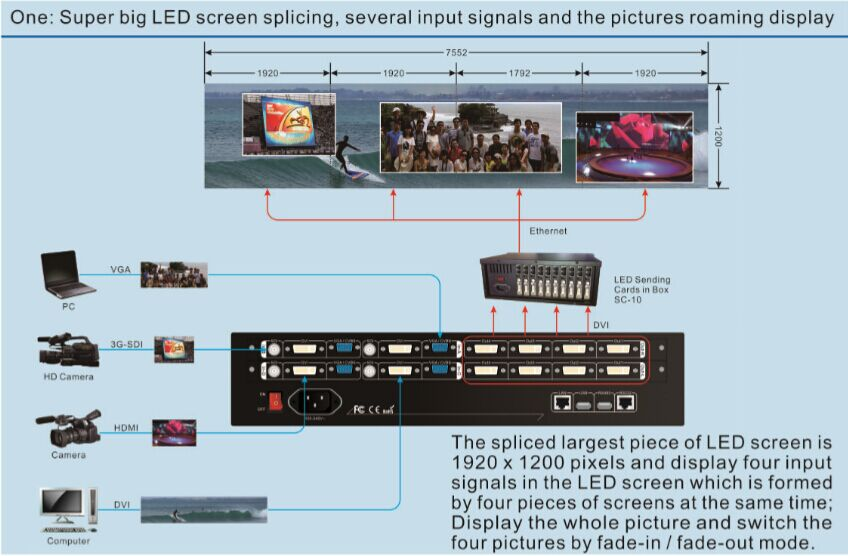

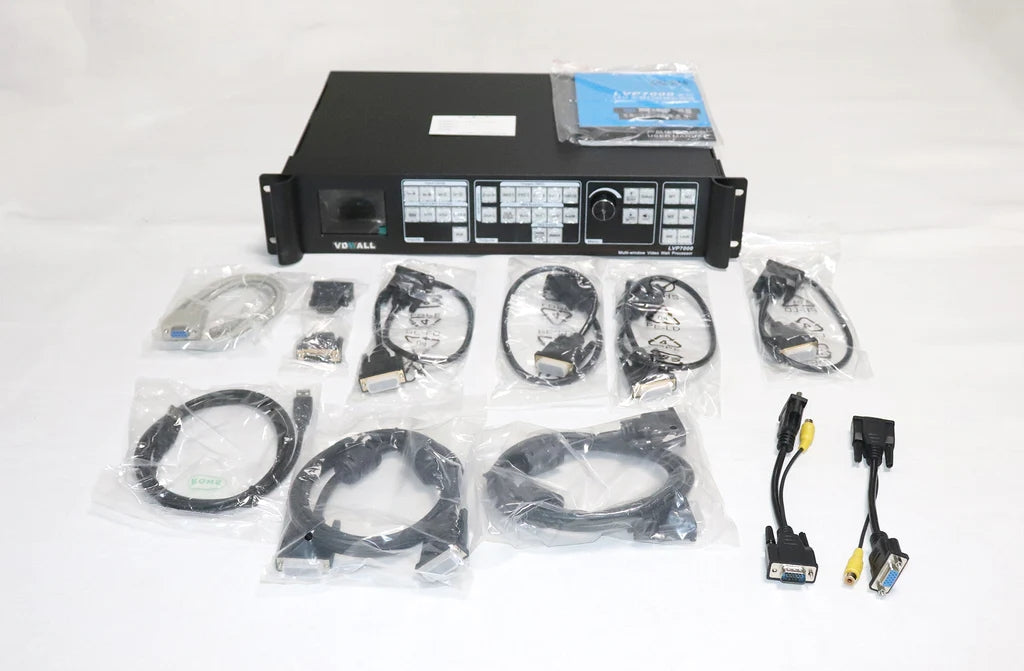

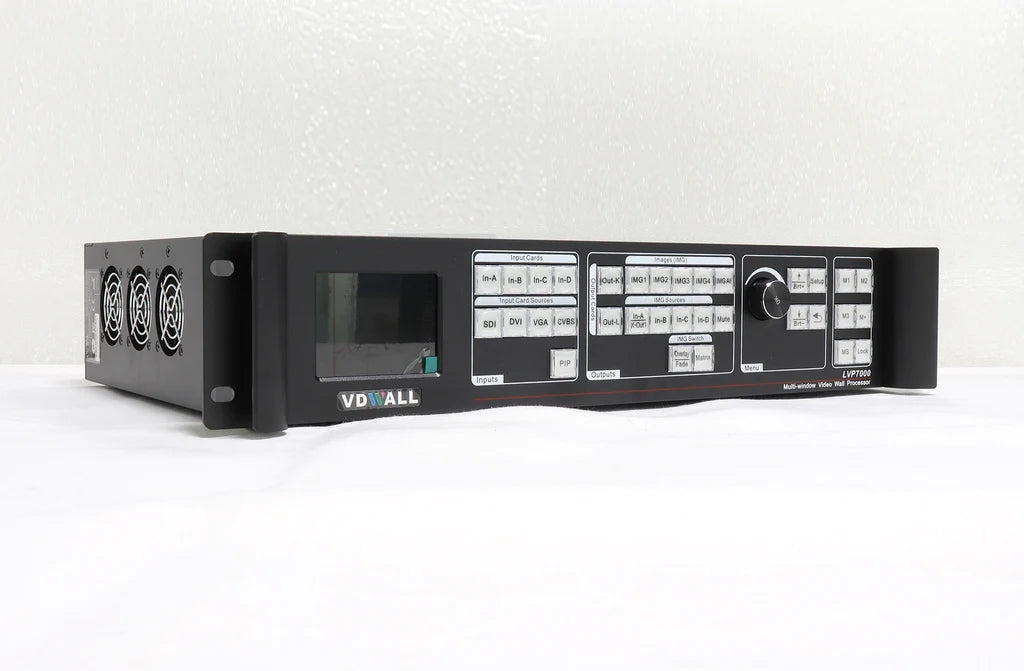

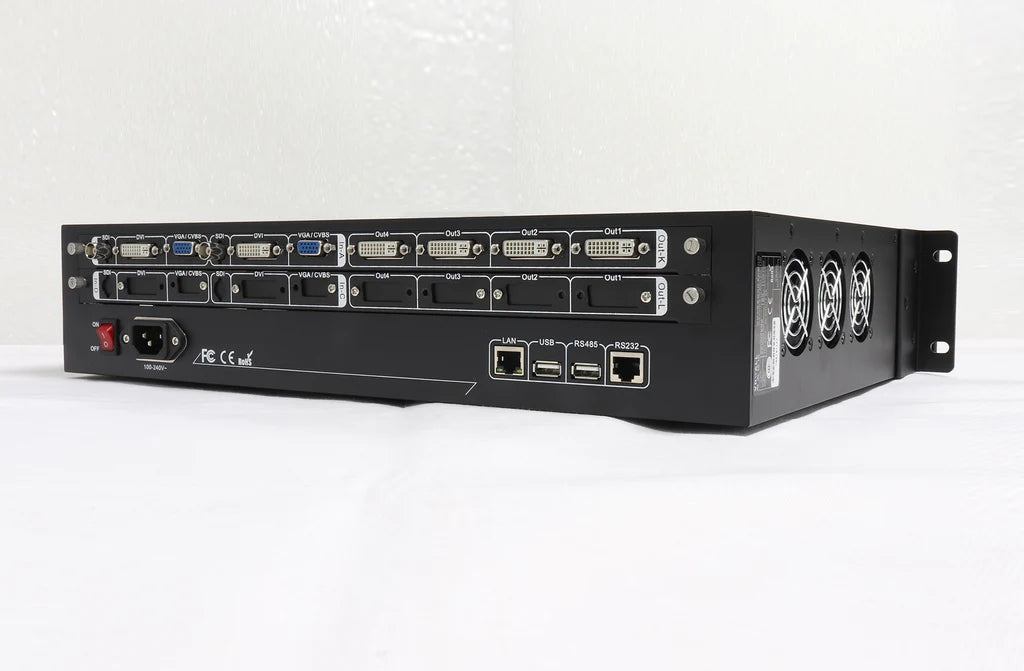

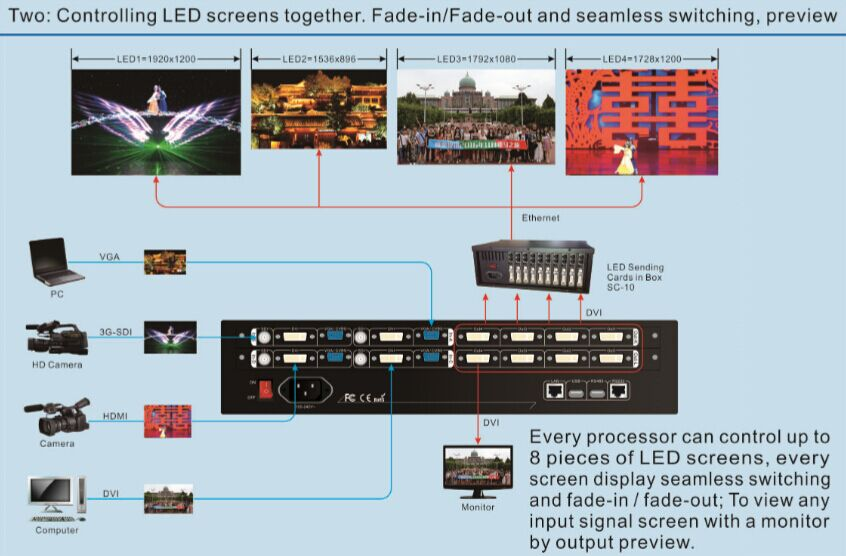

More Pictures of VDWALL LVP7000 Multi-window LED video wall processor
VDWALL LVP7000 Multi-window LED video wall processor Download:
Click here to download LVP7000 Description
Click here to download LVP7000 User Manual
