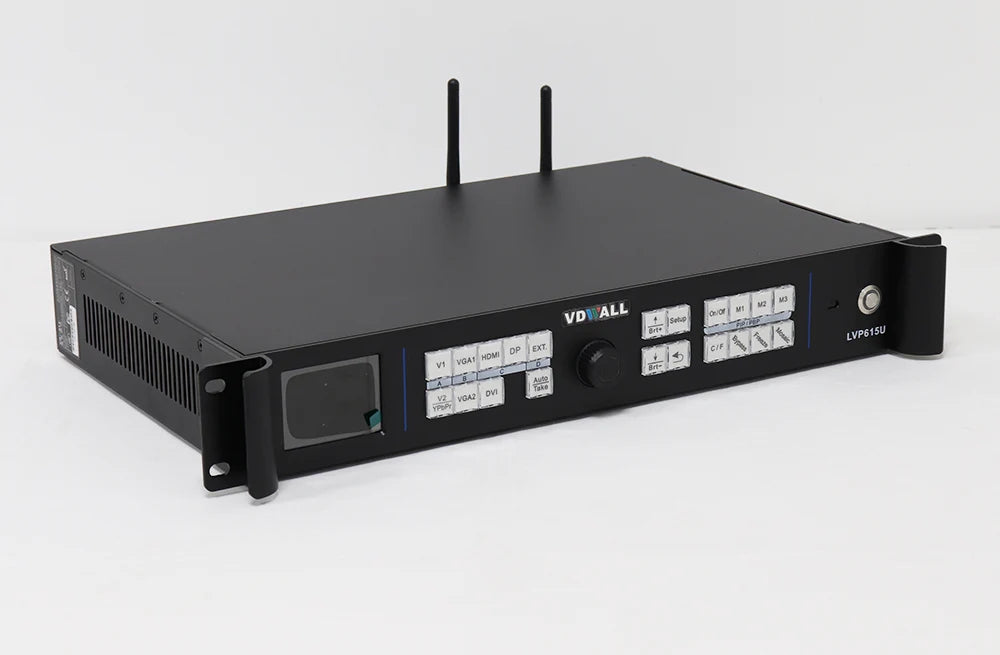

VDwall LVP615U HD LED Video Processor Price
Brand: VDWall
Product Code: VDWALL-LVP615U
Availability: In stock
VDwall LVP615U HD LED Video Processor Features:
1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer
- Two signal switching ways: one button to switch and pretake + Take switching
- Seamless switching, Fade-in/Fade out & Blend switching in different input signals
- 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display
- AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen
- User define output format to reach maximal horizontal width 3840 or vertical height 1920
- User define DVI EDID to realize pixel-to-pixel display
- DVI loop to install multi-unit in parallel to drive indefinite LED lattice . Frame synchronous techology, no miss alignment or delay between two adjacent image output.
- Convenient operation by panel/PC software/ infrared remote contol/Wi-Fi
10.Smart chip 4 core 64-bit processor, multi-core 3D CPU 4K / 2K 60FPS hard decoding
11.Plug and play USB interface, fast input
12.Supports multiple audio, video and file formats
13.Intelligent WIFI networking, full platform coverage, can play network resources
14.Support mobile phone wireless operation, support Airplay DNLA Miricast compatible with iOS Android and Windows operating system
15.Mobile phone operation to support the source switch, splicing, freeze and picture in the opening and closing

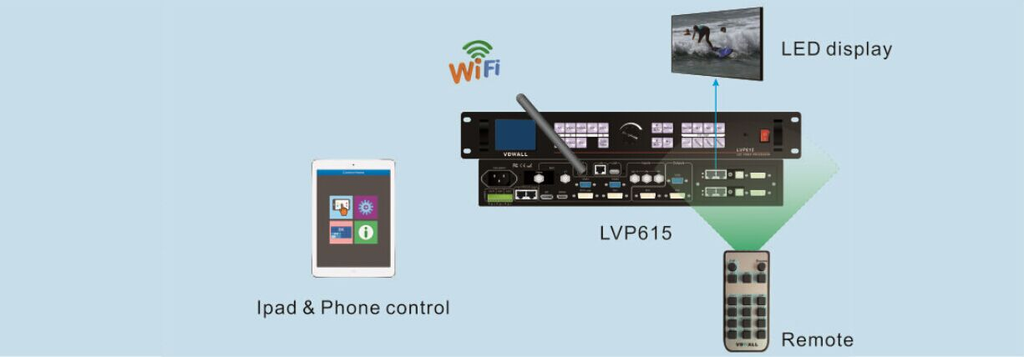

Feature one:Wireless Wi-Fi control&remote control

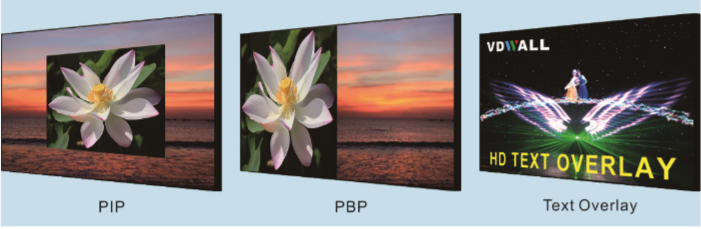

Feature two:PIP/PBP,text overlay

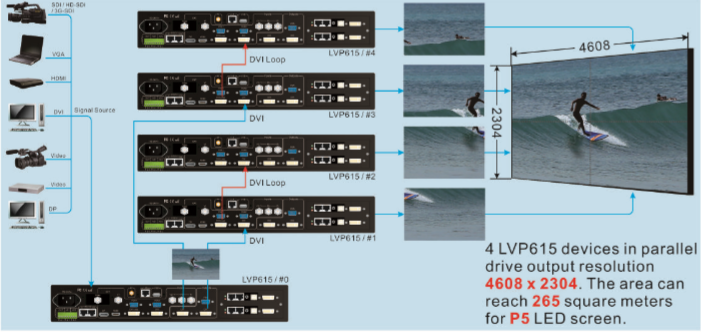

Feature three: Synchronic Multi-uit In Parallel
VDwall LVP615U HD LED Video Processor Specification:
|
Inputs |
||||
|
Number/type |
2×Video |
|||
|
|
||||
|
1×YPbPr |
||||
|
|
||||
|
2×VGA（VESA） |
||||
|
|
||||
|
1×DP（VESA） |
||||
|
|
||||
|
1×DVI（VESA） |
||||
|
|
||||
|
1×HDMI |
||||
|
|
||||
|
（VESA/CEA-861） |
||||
|
|
||||
|
1×EXT. |
||||
|
|
||||
|
（2*USB+WIFI） |
||||
|
Video system |
PAL/NTSC |
|||
|
Composite |
1V（p_p）/ 75Ω |
|||
|
|
||||
|
video amplitude |
||||
|
|
||||
|
/Impedance |
||||
|
YPbPr format |
SD/HD（CEA -861） |
|||
|
YPbPr |
Y= 1.0V（p_p）/ 75Ω |
|||
|
|
|
|||
|
Amplitude |
Pb= 0.35V（p_p）/ 75Ω |
|||
|
|
|
|||
|
/Impedance |
Pr= 0.35V（p_p）/ 75Ω |
|||
|
VGA format |
PC（VESA） |
≤2048x1152 _60Hz |
||
|
VGA Amplitude |
R、G、B = 0.7 V |
|||
|
|
|
|||
|
/Impedance |
（p_p）/ 75Ω |
|||
|
DP format |
DisplayPort1.1 |
|||
|
|
||||
|
（VESA） |
||||
|
DVI format |
PC（VESA） |
≤2304x1152_60Hz |
||
|
HDMI1.3 |
||||
|
|
||||
|
（CEA -861） |
||||
|
Custom |
width≤3840 |
|||
|
|
|
|||
|
output format |
height≤1920 |
|||
|
HDMI format |
PC（VESA） |
≤2304x1152_60Hz |
||
|
|
||||
|
（HDCP1.3） |
HDMI1.3 |
≤1920x1080p_60Hz |
||
|
|
|
|||
|
|
（CEA -861） |
|||
|
SDI format |
SMPTE259M-C |
480i_60Hz |
||
|
|
|
|||
|
SMPTE 292M |
576i_50Hz |
|||
|
|
|
|||
|
SMPTE 274M/296M |
720p、 |
|||
|
|
|
|||
|
SMPTE 424M/425M |
1080i、 |
|||
|
|
|
|||
|
|
1080p |
|||
|
audio |
2.0Vp-p/10K? |
|||
|

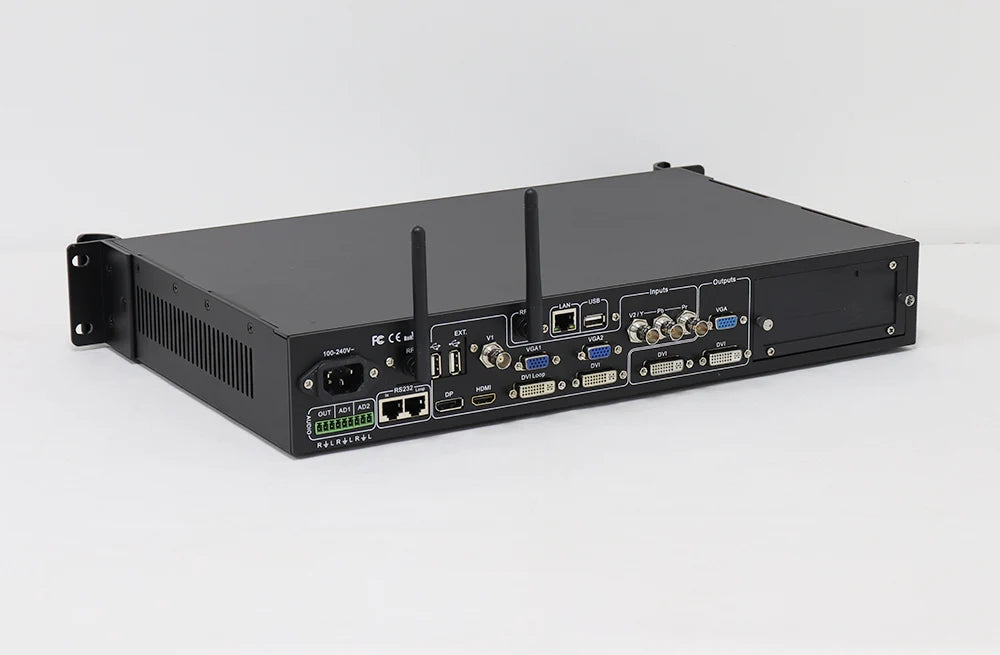

Input connectors |
Video：BNC |
|||
|
|
||||
|
YPbPr：BNC×3 |
||||
|
|
||||
|
VGA：15pin |
||||
|
|
||||
|
D_Sub(female) |
||||
|
|
||||
|
|
||||
|
|
||||
|
DVI：24+1 |
||||
|
|
||||
|
DVI_D |
||||
|
|
||||
|
HDMI：HDMI |
||||
|
|
||||
|
port A type |
||||
|
|
||||
|
SDI ：BNC |
||||
|
Outputs |
||||
|
Number /Type |
1×VGA |
|||
|
|
||||
|
（RGBHV） |
||||
|
|
||||
|
2×DVI |
||||
|
VGA/DVI resolution |
1024×768_60Hz |
|||
|
|
||||
|
/75Hz |
||||
|
|
||||
|
1080×1920_60 Hz |
||||
|
|
||||
|
1200×1600_60 Hz |
||||
|
|
||||
|
1280×1024_60Hz |
||||
|
|
||||
|
/75Hz |
||||
|
|
||||
|
1366×768_60Hz |
||||
|
|
||||
|
1440×900_60Hz |
||||
|
|
||||
|
1536×1536_60 Hz |
||||
|
|
||||
|
1600×1200_60Hz |
||||
|
|
||||
|
1920×1080p_50Hz |
||||
|
|
||||
|
/60Hz |
||||
|
|
||||
|
1920×1200_60 Hz |
||||
|
|
||||
|
2048×1152_60Hz |
||||
|
|
||||
|
2304×1152_60Hz |
||||
|
|
||||
|
2560×816_60Hz |
||||
|
|
||||
|
Custom |
||||
|
|
||||
|
output format |
||||
|
|
||||
|
（maximum output |
||||
|
|
||||
|
horizontal 3840 |
||||
|
|
||||
|
pixels or vertical |
||||
|
|
||||
|
1920 pixels.） |
||||
|
VGA Amplitude |
R、G、B = 0.7 V（p_p）/ 75Ω |
|||
|
|
||||
|
/Impedance |
||||
|
Output ports |
VGA OUT： |
|||
|
|
||||
|
15pin D_Sub |
||||
|
|
||||
|
( female) |
||||
|
|
||||
|
DVI OUT1： |
||||
|
|
||||
|
24+1 DVI_D |
||||
|
|
||||
|
DVI OUT2： |
||||
|
|
||||
|
24+1 DVI_D |
||||
|
Others |
||||
|
Control methods |
Wireless wifi, |
|||
|
|
||||
|
IP/LAN,front |
||||
|
|
||||
|
panel button, |
||||
|
|
||||
|
infrared remote |
||||
|
|
||||
|
control, PC software. |
||||
|
|
||||
|
Ipad, mobile phone |
||||
|
|
||||
|
terminal and etc.. |
||||
|
Input voltage |
100-240VAC |
|||
|
|
||||
|
50/60Hz |
||||
|
Maximum power |
≤25W |
|||
|
|
||||
|
consumption |
||||
|
Environment |
0-45 ℃ |
|||
|
|
||||
|
temperature |
||||
|
Environment |
15-85% |
|||
|
|
||||
|
humidity |
||||
|
size（package） |
130mm（H） |
|||
|
|
||||
|
×350mm（W）×520mm（L） |
||||
|
Weight |
G.W.：5.7 Kg, |
|||
|
|
||||
|
N.W.：4.0 Kg |
||||

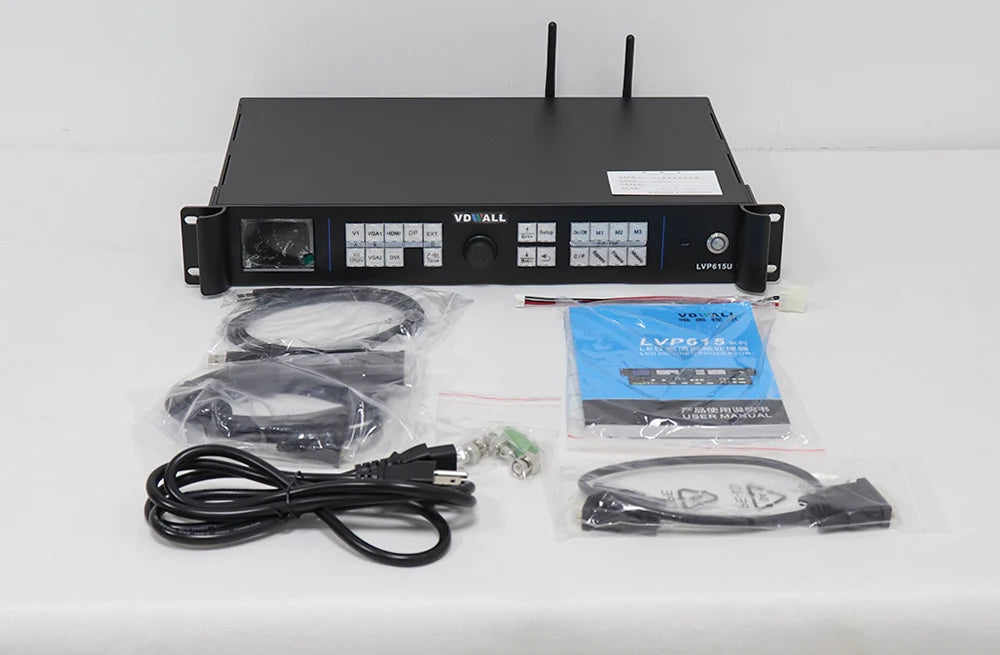

More Pictures of VDwall LVP615U HD LED Video Processor Price
VDwall LVP615U HD LED Video Processor Download:
Overview of VDwall LVP615U HD LED Video Processor Price V1.0
VDwall LVP615U HD LED Video Processor user manual
