VDWALL A65 Series Multi-screen Splicing LED 4K Processor
Brand: VDWall
Product Code: VDWALL-A65
Availability: In stock
VDWALL A65 Series 4K Multi-screen Splicing Processor Features:
Faroudja® Real Color® image processing，10+ Bit Faroudja® DCDI de-interlacing processing，Faroudja® TureLife™ image quality enhancement；
- 5 true 4K2K_60Hz input ports，among which 3 HDMI2.0（2）、2 DP1.2；3 2K combined digital+ analogue input ports, including one HDMI1.3(compatible with DVI、VGA ）、one 3G-SDI、one CVBS；
- Seamless and Fade in/out signal transition；
- Genuine 10-Bit image processing，color more vivid and natural，gray level transition more smooth;
- 4 DVI output ports，driving capability up to 9.2 million pixels. Synchronized splicing of 3840X2160 LED screen；each DVI output offers user defined resolution, maximum width or height 2160, 4 DVI outputs jointly realize 8640 pixels driving in width or height;
- Any size&position setup of output image and input image cropping, greatly facilitate irregular screen splicing;
- Provides saturation、gray level、brightness adjustment in individual RGB channel with 256 level；
- Adaptive calculation aided splicing，user just configure size&position of each unit screen, A65 will automatically calculate and apply mosaic parameter, flexible and intuitive;
- Synchronized monitoring available，connect one DVI output to 1080P LCD to monitor 4K input signal；
- Genlock multiple device cascading, extend pixel to pixel display to 8K4K@60Hz or 16K2K@60Hz via 4 A65 cascading;
- 13 preset display modes，support mode duplication and backup;
- Flexible and convenient front panel control or RS232/USB/LAN control;
- Widely applied in narrow pitch screen projects, such as exhibition、station advertisement、stage performance、restaurant hall、lecture room、school auditorium、church、market promotion etc；
VDWALL A65 Series 4K Multi-screen Splicing Processor Parameter:
|
Input |
||
|
Amount / Type |
3×HDMI 2.0（VESA/CEA-861） |
|
|
|
||
|
2×DP1.2（VESA） |
||
|
|
||
|
1×CVBS |
||
|
|
||
|
1×DVI（VESA/CEA-861）compatible with HDMI1.3a/VGA |
||
|
|
||
|
1×SDI（SDI/HD-SDI/3G-SDI） |
||
|
CVBS Format |
PAL/NTSC |
|
|
CVBS Impedance |
1V（p_p）/ 75Ω |
|
|
VGA Format |
PC（VESA） |
≤1920×1200_60Hz |
|
VGA Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|
|
DVI Format |
PC（VESA） |
≤1920×1200_60Hz |
|
HDMIP Format（HDCP2.2） |
PC（VESA） |
≤4096×2160_60Hz |
|
HDMI2.0（CEA-861） |
|
|
|
DP Format（HDCP2.2） |
DisplayPort1.2（VESA） |
≤4096×2160_60Hz |
|
SDI Format |
SMPTE259M-C |
480i_60Hz |
|
|
|
|
|
SMPTE 292M |
576i_50Hz |
|
|
|
|
|
|
SMPTE 274M/296M |
720p、1080i、1080p |
|
|
|
|
|
|
SMPTE 424M/425M |
|
|
|
Input Port |
CVBS: BNC/ 75Ω |
|
|
|
||
|
DVI: 24+1 DVI_D |
||
|
|
||
|
HDMI: HDMI (Type A) |
||
|
|
||
|
DP: DP port |
||
|
|
||
|
SDI: BNC/ 75Ω |
||
|
Output |
||
|
Type/Amount |
4×DVI |
|
|
DVI Format |
2160X1160_50Hz、2048X1200_50Hz、1920X1200_50Hz、 |
|
|
|
||
|
1920X1080_50Hz、1680X1440_50Hz、1440X1680_50Hz、 |
||
|
|
||
|
1200X1960_50Hz、1200x1600_60Hz、1440x1440_60Hz、1600x1344_60Hz、1920×1080_60Hz、2160x960_60Hz、 |
||
|
|
||
|
User defined resolution（Maximum 2160 pixels in width or height) |
||
|
Output Port |
DVI：24+1 DVI_D |
|
|
Others |
||
|
Control Ports |
RS232/USB/LAN |
|
|
AC Power |
100-240V/AC 50/60Hz |
|
|
Power Consumption |
35W |
|
|
Ambient Temperature |
0-45 ℃ |
|
|
Ambient Humidity |
15-85% |
|
|
Dimension |
482.6(L) x 380(W) x 66.6(H)mm |
|
|
Package Dimension |
535(L) x 475(W) x 145(H)mm |
|
|
Weight |
G.Weight：8.5Kg, N.Weight：6Kg |
|

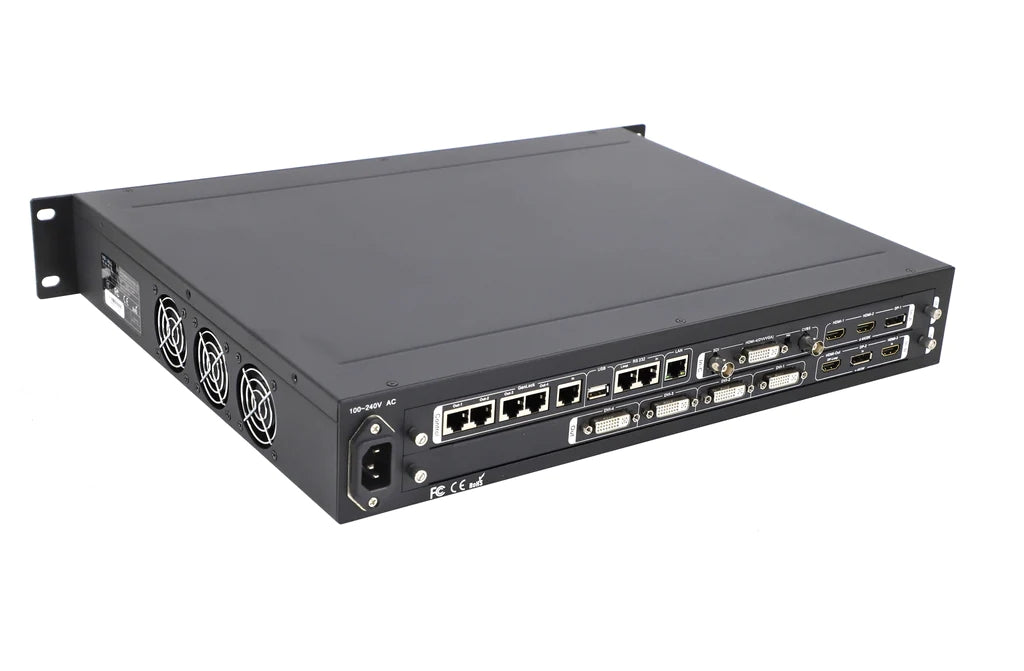

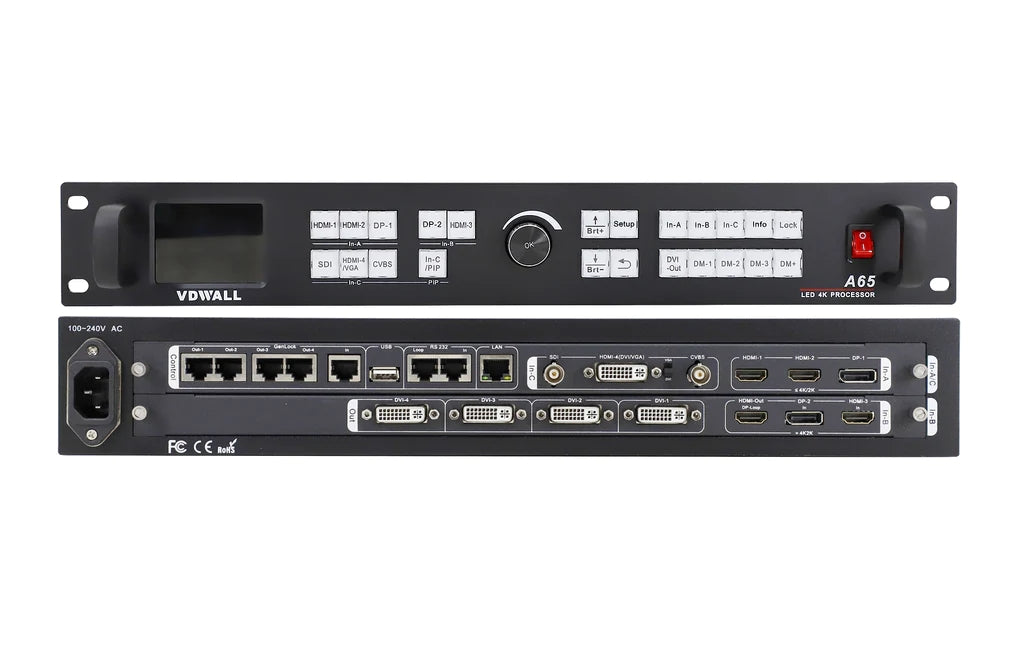

Most pictures of VDWALL A65 Series Multi-screen Splicing LED 4K Processor：
Download Specification
VDWall A65 Overview
VDWall A65 user quick setup guide
VDWall A65 GenLock Description
