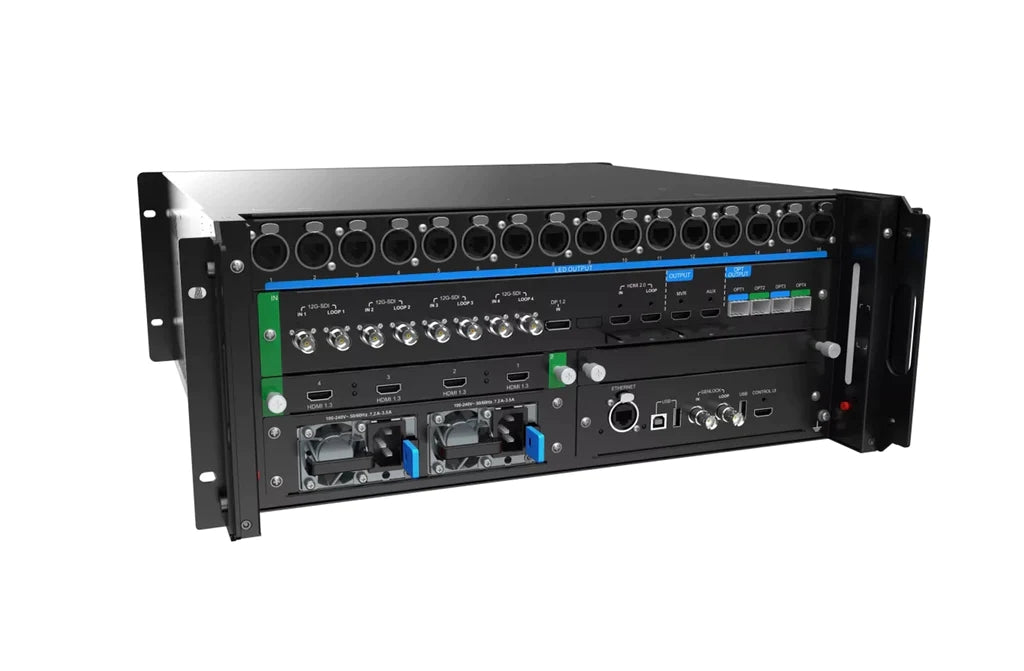

Novastar NovaPro UHD All-in-one LED Wall Video Processor
Brand: Novastar
Product Code: Novastar-NovaPro-UHD
Availability: In stock
NovaPro UHD All-in-one LED Wall Video Processor is a new all-in-one controller developed by NovaStar. By integrating video processing, video control and LED screen configuration functions into one controller, this product is capable of receiving a variety of video signals, processing and sending images of resolutions up to ultra HD 4K×2K@60Hz and 8K×1K@60Hz, and provides a maximum loading capacity of 8.8 million pixels.
With the built-in Master VI smart platform, the NovaPro UHD supports layer creation, property settings, and screen configuration using the mouse, keyboard and monitor.
The NovaPro UHD can send the processed video to LED display through Neutrik Ethernet ports and OPT ports. Thanks to the powerful video processing and sending capabilities, this product is well suited for high-end rental applications, stage control systems and fine-pitch LED displays.
NovaPro UHD All-in-one LED Wall Video Processor Features:
-
A variety of input connectors
- 4 × 12G-SDI connectors with loop-through
- 1 × HDMI 2.0 connector with loop-through
- 1 × DP 1.2 connector
-
1 × replaceable input card
Input card can be DVI or HDMI (default) card. -
16 × Neutrik Ethernet ports and 4 × OPT ports
- The loading capacity can be up to 8.8 million pixels
- 4 × 10G OPT outputs with copy and hot backup modes
- 6 × layers, 1 × OSD, 1 × LOGO, and 1 × BKG
-
2 × layers up to 4K×2K, 4 × layers up to 2K×1K
Layer scaling supported -
OSD supports 4K×2K resolution, cropping, opacity, dynamic or static images and position
- Layer opacity adjustment, irregular layers, layer mask, and layer copying, mirroring and flipping supported
- Layer priority adjustment by z-order
- Up to 8K output width or height of a single device
-
Multiviewer settings
Monitor the input sources, PVW, PGM, or perform mixed monitoring. - Quick and advanced screen configurations
- With the built-in smart platform Master VI, LEDscreen configuration and layer configuration canbe easily performed using the connected mouse, keyboard and monitor.
- 10-bit processing of the input source
- HDR function to make images finer and smoother (NovaStar A8s or A10s Plus receiving card required)
-
Low latency output
The delay from the input source to receiving card can be as low as 1 frame when the lowlatency and synchronization functions are turned on and the data runs vertically on the screen.
NovaPro UHD All-in-one LED Wall Video Processor Parameter:
|
Input |
||
|
Connector |
Quantity |
Description |
|
12G-SDI |
4 |
Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and |
|
|
||
|
ST-292 (HD) standard video inputs. |
||
|
|
||
|
Input resolutions up to 4K×2K@60Hz and downward compatible Supports 12G-SDI output with loop-through. |
||
|
|
||
|
Note: |
||
|
|
||
|
When the input source is a 12G-SDI signal, you must use CANARE / L-4.5CHD+ / UHDTV-SDI SDI cables and the cable length should be less than 50 m. |
||
|
|
||
|
12G-SDI connectors 1, 2 and 3 DO NOT support the deinterlaced function, but connector 4 supports the function. |
||
|
DP 1.2 |
1 |
Input resolutions up to 4K×2K@60Hz (8K×1K@60Hz) and downward compatible |
|
|
||
|
Supports HDCP 1.3. |
||
|
|
||
|
DOES NOT support interlaced signal inputs. |
||
|
HDMI 2.0 |
1 |
Input resolutions up to 4K×2K@60Hz (8K×1K@60Hz) and downward compatible |
|
|
||
|
Supports HDCP 1.4 and HDCP 2.2. |
||
|
|
||
|
DOES NOT support interlaced signal inputs. Supports HDMI 2.0 output with loop-through. |
||
|
HDMI 1.3 |
4 |
D_4×HDMI 1.3 input card by default |
|
|
||
|
Input resolutions up to 1920×1080@60Hz Supports HDCP 1.3. |
||
|
|
||
|
Supports interlaced signal inputs. |
||
|
|
||
|
The HDMI input card can be replaced by a D_4×DVI input card. |
||
|
Output |
||
|
Connector |
Quantity |
Description |
|
Ethernet port |
16 |
Gigabit Ethernet output ports |
|
|
||
|
Maximum loading capacity: 8.8 million pixels |
||
|
Maximum width: 8192 pixels |
||
|
Maximum height: 8192 pixels |
||
|
OPT 1–4 |
4 |
10G fiber optical output ports (copy and hot backup) |
|
|
||
|
OPT 1 transmits data on Ethernet ports 1–8. |
||
|
OPT 2 transmits data on Ethernet ports 9–16. |
||
|
OPT 3 is the copy/hot backup channel for OPT 1. |
||
|
OPT 4 is the copy/hot backup channel for OPT 2. |
||
|
MVR |
1 |
HDMI 1.3 connector |
|
|
||
|
A Multiviewer connector to monitor the input source, PVM, PGM or perform mixed monitoring |
||
|
AUX |
1 |
HDMI 1.3 connector |
|
|
||
|
An auxiliary output connector for connecting an auxiliary device, such as a teleprompter |
||
|
Control |
||
|
Connector |
Quantity |
Description |
|
ETHERNET |
1 |
For PC communication or network connection |
|
USB |
3 |
1 × USB (Type-B): Connect to the PC for device debugging. |
|
2 × USB (Type-A): |
||
|
Insert a USB drive to perform system update. |
||
|
Connect a mouse or keyboard. |
||
|
Output connector for device cascading |
||
|
GENLOCK IN-LOOP |
1 |
Connect a synchronization signal source to synchronize the cascaded devices. |
|
CONTROL UI |
1 |
Connect to a monitor for displaying the user interface of the embedded Master VI software. |
Download Specification
NovaPro UHD All-in-one LED Wall Video Processor Specification
