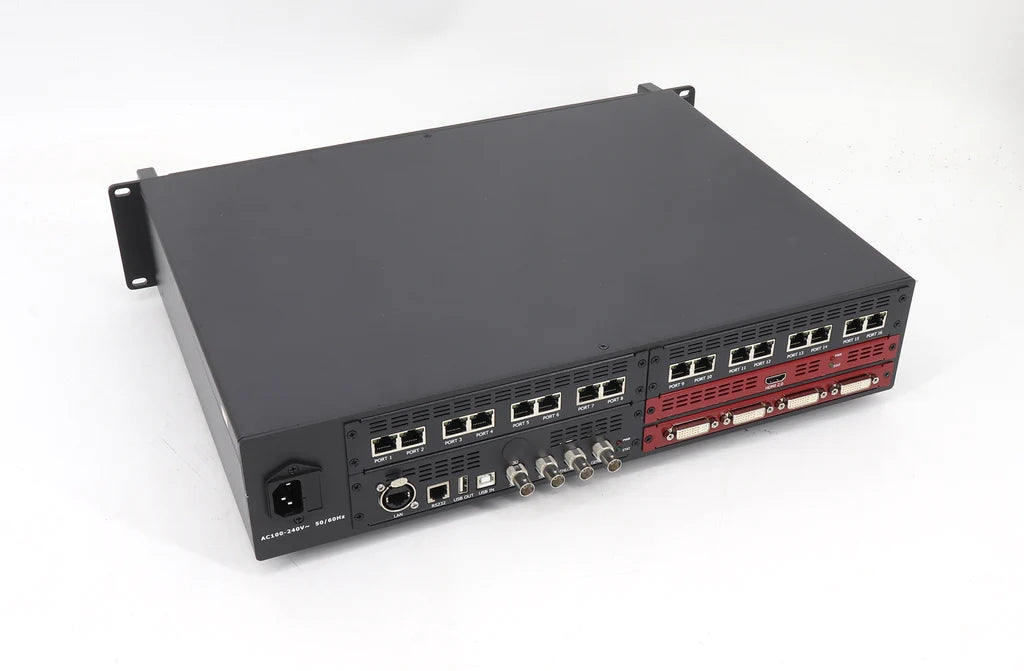

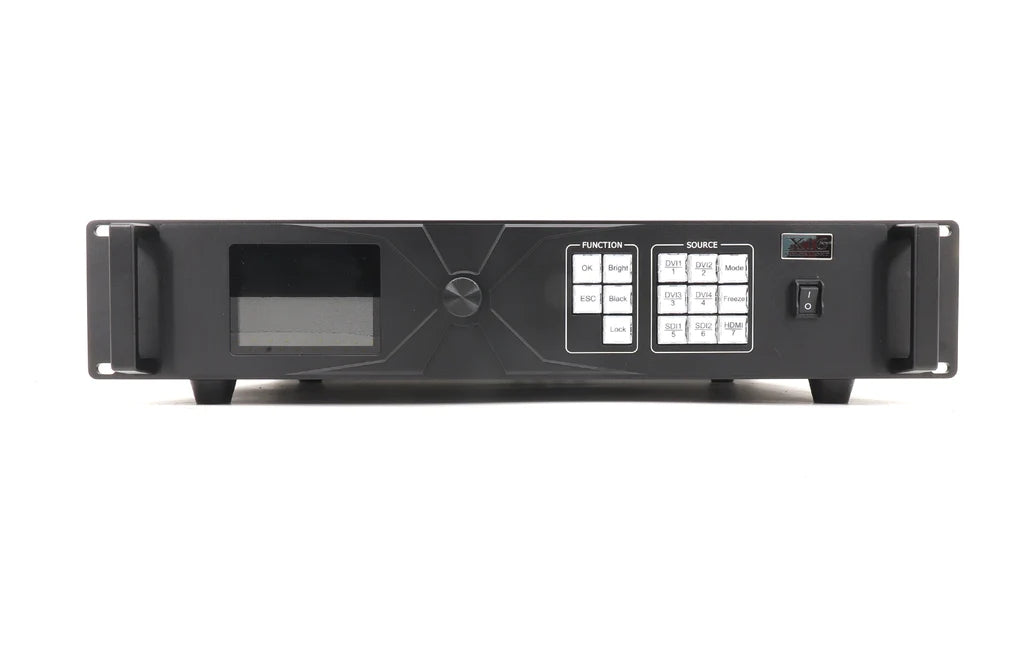

Colorlight X16 Pro Professional Large LED Screen Display Processor
Colorlight X16 Pro Professional Large LED Screen Display Processor Overivew:
Colorlight X16 Pro Professional Large LED Screen Display Processor is a professional grade LED display control device, with powerful video signal reception, splicing and processing capabilities, the maximum reception 4096 × 2160 pixels 4K digital signal; support for HDMI, DP, DVI, SDI and other digital interfaces, seamless switching between multiple signals; support for splicing, broadcast level scaling, maximum support for 7-screen display.
With 16 Gigabit Ethernet outputs, the X16 PRO can support LED displays up to 8192 pixels wide and 4096 pixels high in a single unit. The X16 PRO also offers a wide range of features for flexible screen control and high quality image display, making it perfect for high-end rental displays and small pitch LED displays.
Colorlight X16 Pro Professional Large LED Screen Display Processor Features:
-Supports a wide range of digital signal interfaces, including HDMI 2.0, DP1.2, SDI, DVI.
-Maximum input resolution 4096×2160@60Hz, supports arbitrary resolution settings.
-Up to 10.4 megapixels with a maximum bandwidth of 8192 pixels and up to 4096 pixels.
-Support arbitrary switching of video sources, according to the display resolution of the input image stitching, scaling.
Supports 7-screen display with free adjustment of position and size.
-Support for HDCP 2.2.
-Supports 3D functionality (optional).
Dual USB 2.0 high-speed communication interfaces for computer debugging and arbitrary cascading between the main controller.
-RS232 serial port, used by computers to send serial commands.
-Supports brightness and color temperature adjustment.
-Supports low light and high grey.
-Support for handheld terminal control (app).
-Supports the full range of Carlite receiver cards, multifunction cards, and fiber optic transceivers.
Colorlight X16 Pro Professional Large LED Screen Display Processor Parameter:
|
Input Interface |
||
|
HDMI 2.0 |
1，with LOOP |
HDMI 2.0&DP 1.2Either one, not both at the same time |
|
DP 1.2 |
1 |
|
|
DVI |
2 |
|
|
HDMI 1.4 |
2 |
|
|
SDI |
2 |
|
|
|
|
|
|
Output Interface |
|
|
|
Port1-16 |
RJ45，16-channel Gigabit Ethernet output, 16 Ethernet ports can be arbitrarily spliced up and down, left and right. |
|
|
|
|
|
|
Specification |
|
|
|
Size |
2U standard box |
|
|
Input voltage |
AC100~240V |
|
|
Rated Power Consumption |
70W |
|
|
Working Temperature |
- 20℃ ~ 60℃ |
|
Download Specification
Colorlight X16 Pro Professional Large LED Screen Display Processor Specification (Chinese)
