Colorlight X1 Professional LED Display Screen Controller
Colorlight X1 Professional LED Display Screen Controller Overview:

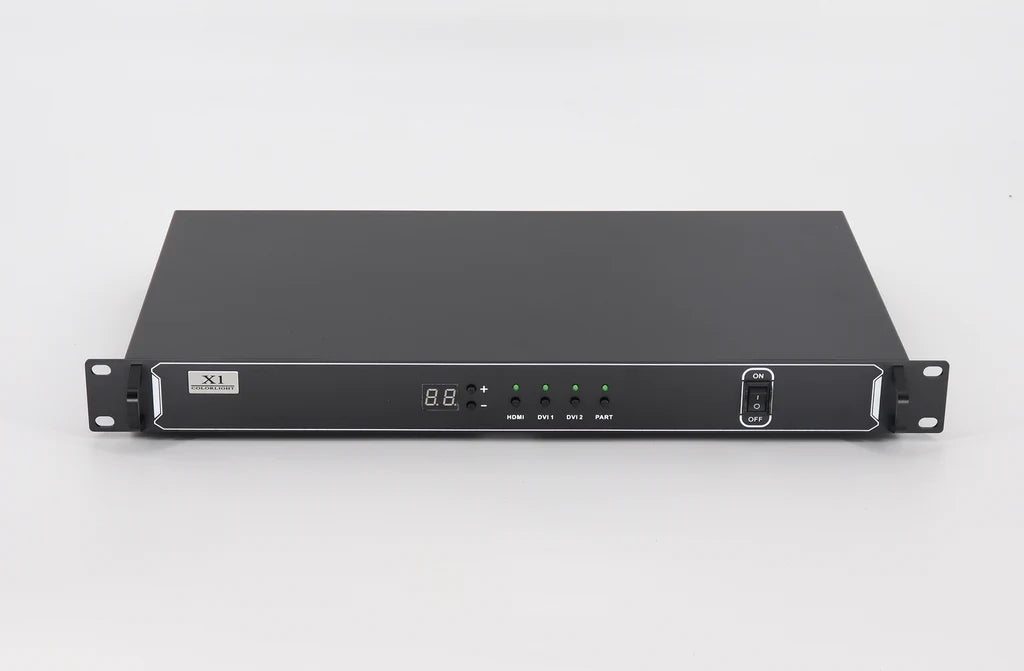

X1 is a professional LED display controller. It possesses powerful video signal receiving and processing capacities, and supports HD digital signals, in which the maximum input resolution is 1920×1200 pixels. It supports HD digital ports including HDMI and DVI, and seamless switching between signals. It supports arbitrary scaling and cropping of video sources.
X1 adopts 2 Gigabit Ethernet outputs, and it supports LED displays of 4096 pixels in maximum width or 2560 pixels in maximum height. Meanwhile, X1 is equipped with a series of versatile functions which can provide flexible screen control and high-quality image displays. It can be perfectly applied to small LED displays.
Colorlight X1 Professional LED Display Screen Controller Features:
- Video input ports including 1×HDMI×1, 2×DVI;
- Supports input resolution up to 1920×1200@60Hz;
- Loading capacity:1.31 million pixels,Maximum Width/Height: 4096 pixels/2560 pixels;
- Supports arbitrary switching of video input, and the image can be zoomed freely;
- Dual USB2.0 for high speed configuration and easy cascading;
- Supports splicing and cascading among several controllers with synchronization strictly;
- Supports brightness and chromaticity adjustment;
- Supports improved gray-scale at low brightness;
- Supports HDCP1.4；
- Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.
|
Input Interface |
|
|
HDMI |
HDMI 1.4 Standard, supports 1920×1200@60Hz, supports HDCP |
|
DVI 1 |
DVI 1.0 Standard, supports 1920×1200@60Hz, supports HDCP |
|
DVI 2 |
DVI 1.0 Standard, supports 1920×1200@60Hz, supports HDCP |
|
|
|
|
|
|
|
Output Interface |
|
|
Port1/2 |
RJ45, 2 Gigabit Ethernet ports |
|
|
|
|
|
|
|
Controlling Interface |
|
|
USB_OUT |
USB output, cascading with the next controller |
|
USB_IN |
USB input, which connects with PC to configure parameters |
|
|
|
|
|
|
|
Specifications |
|
|
Size |
1U standard box |
|
Input voltage |
AC 100~240V |
|
Rated Power Consumption |
8W |
|
Working Temperature |
-20~60℃ |
Download Specification
