VDWALL LVP919 HD LED Video Wall Processor
Brand: VDWall
Product Code: VDWALL-LVP919
Availability: In stock
Features of VDWALL LVP919 HD LED Video Wall Processor:
1.Faroudja® Real Color®Picture Processing, Faroudja® DCDI Cinema Processing, Faroudja® TureLife™Video Image Enhancement
- 8*input, 4 *output, dual image display
- 4*DVI output, Single output has the resolution up to 1920 x 1200_60Hz
- Zoom in synchronously mosaic, single unit maximum mosaic level up to 7680 pixels or vertical 4800 pixels, or 3840x2400 pixels
- Multiple analog and digital mixed signals input:2xCVBS、1xVGA、2xHDMI、2xDVI、1xExt
- Seamless Switching, Fade In Fade Out Switching
- PIP(Picture In Picture), Any PIP display; AIAO(Any In Any Out), any input crop and any output
- Multiple output resolutions can be set, flexibly adapting to the size of the LED screen
- Can preset multiple user-defined display modes, one button switching between modes
- Control modes: panel button, software by RS232/USB/LAN, flexible and convenient
- Add 4 channels of HDMI audio (only when DVI, HDMI interface is connected to HDMI signal) and 1 channel of SDI audio, up to 8 channels of audio synchronously switching
- 24/7 Application, stable and reliable
Parameter of VDWALL LVP919 HD LED Video Wall Processor:
InputsOutputsOthers
|
Number / type |
2×CVBS |
|
|
1×VGA（RGBHV） |
||
|
2×DVI（VESA / CEA-861） |
||
|
2×HDMI（VESA / CEA-861） |
||
|
1×SDI（HD-SDI / 3G-SDI）(optional) |
||
|
Video system |
PAL / NTSC |
|
|
Composite Video |
1V（p_p）/ 75Ω |
|
|
Amplitude Impedance |
||
|
VGA format |
PC（VESA standard） |
≤1920×1200_60Hz |
|
VGA Amplitude |
R |
|
|
Impedance |
、G、B = 0.7 V（p_p）/ 75Ω |
|
|
DVI format |
PC（VESA standard） |
≤1920×1200_60Hz |
|
HDMI1.3（CEA-861） |
≤1080p_60Hz |
|
|
HDMI format |
PC（VESA standard） |
≤1920×1200_60Hz |
|
HDMI1.3（CEA-861） |
≤1080p_60Hz |
|
|
SDI format |
SMPTE259M-C |
480i_60Hz |
|
SMPTE 292M |
576i_50Hz |
|
|
SMPTE 274M / 296M |
720p、1080i、1080p |
|
|
SMPTE 424M / 425M |
|
|
|
Input connectors |
CVBS：VGA P4 |
|
|
VGA：15pin D_Sub ( female ) |
||
|
DVI：24+1 DVI_D |
||
|
HDMI：HDMI A type |
||
|
SDI：BNC / 75Ω |
||
|
Audio input type number |
Analog stereox3+（HDMI embedded audio） |
|
|
Audio amplitude |
2.0Vp-p/10KΩ |
|
|
impedance |
||
|
Number / type |
4 x DVI |
|
|
DVI format |
1024 x 768_60Hz |
|
|
1280 x 1024_60Hz |
||
|
1440 x 1440_60Hz |
||
|
1920 x 1080_50Hz |
||
|
1920 x 1080_60Hz |
||
|
1920 x 1200_60Hz |
||
|
Output connectors |
DVI OUT：24+1 DVI_D |
|
|
Audio output type |
Analog stereox1 |
|
|
number |
||
|
Audio output load |
70mW/32Ω or 105mW/16Ω |
|
|
impedance |
||
|
Control |
RS232 / USB / LAN |
|
|
Input voltage |
100-240VAC 50 / 60Hz |
|
|
Power consumption |
≤35W |
|
|
Environment |
0-45℃ |
|
|
Temperature |
||
|
Environment Humidity |
15-85% |
|
|
Product Size |
482.6（L）x274（W）x66.6（H）mm |
|
|
Package Size |
535（L）x400（W）x145（H）mm |
|
|
Weight |
G.W：6.2Kg, N.W.：4.2Kg |
|

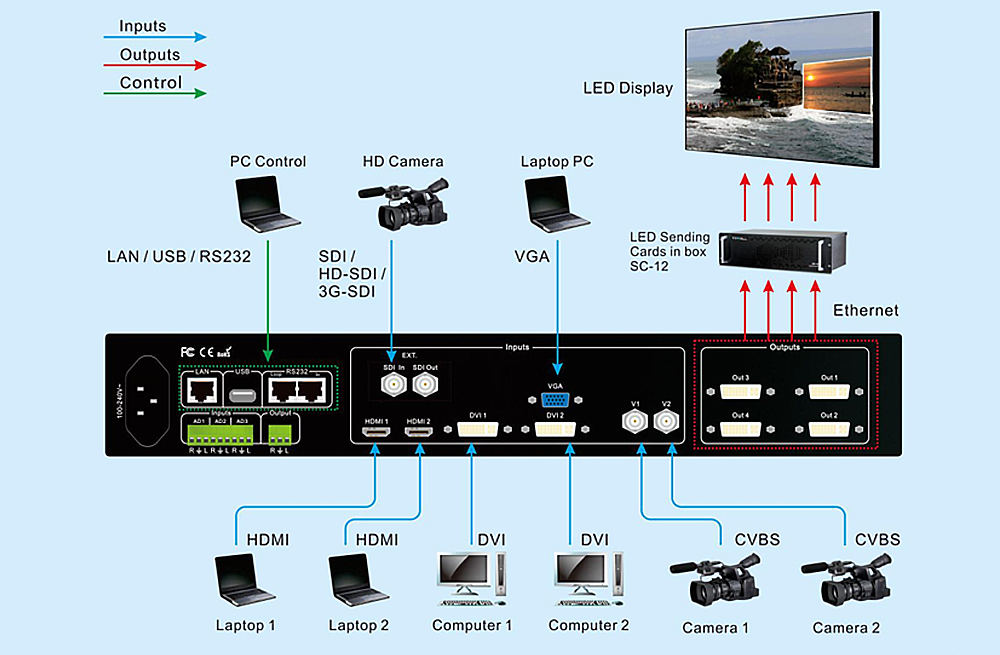

VDWALL LVP919 HD LED Video Wall Processor Connection Diagram:

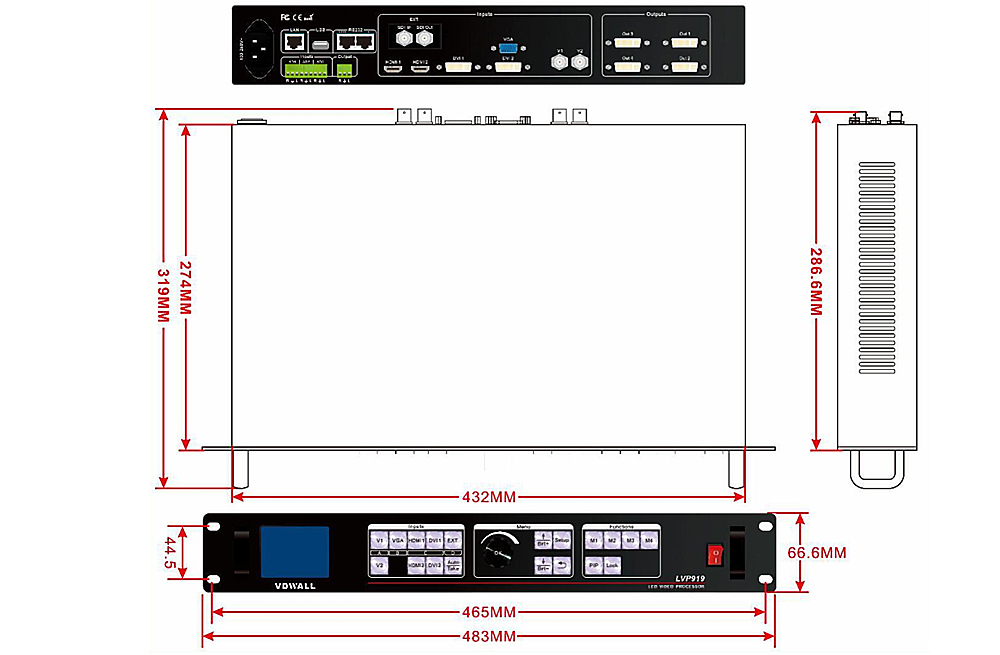

VDWALL LVP919 HD LED Video Wall Processor Product Dimension:

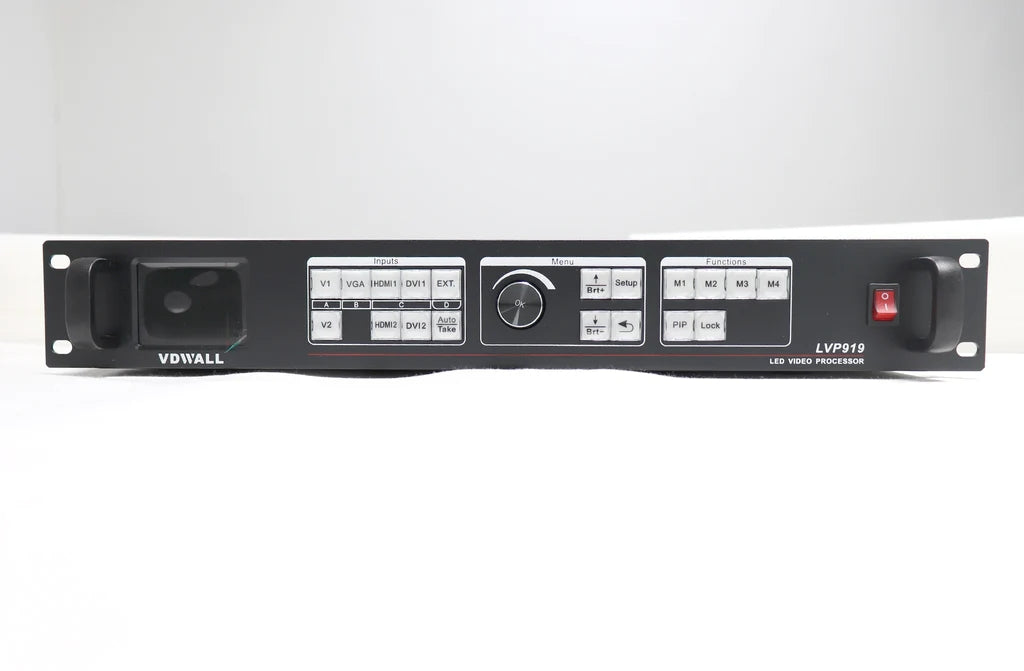

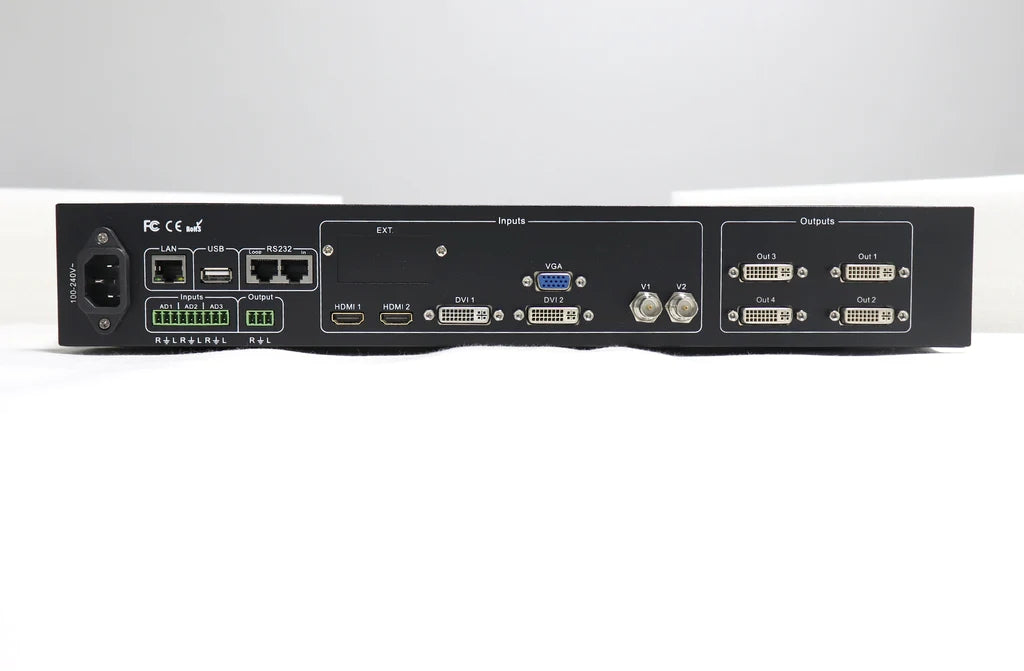

More Pictures of VDWALL LVP919 HD LED Video Wall Processor
Download Specification
