Novastar

Novastar MRV560-1 EMC LED Screen Display Receiving Card

$35.50


Информация по уходу

Отображение общей информации о продукте или конкретной информации о продукте с помощью метаполей.

Доставка и доставка

Добавьте некоторую общую информацию о вашей доставке и правилах доставки.

Добавьте выдающееся сообщение для ваших клиентов

Brand: Novastar

Product Code: Novastar-MRV560-1

Availability: In stock



Novastar MRV560-1 EMC LED Screen Display Receiving Card Features:

MRV560 is the EMC version of MRV360 with its effective reduction of the electromagnetic radiation of the whole system.

1)Single card outputs 16-group of RGBR 'data;
2)Single card outputs 20-group of RGB data;
3)Single card outputs 64-group of serial data;
4)MOM can store calibration coefficient and LED module information;
5)Single card supports resolution of 256x226;
6)Configuration file readback;
7)Temperature monitoring;
8)Ethernet cable communication status detection;
9)Power supply voltage detection;
10)High gray scale and high refresh rate;
11)Pixel-by-pixel brightness and chromaticity calibration.
12)Brightness and chromaticity calibration coefficients for each LED;
13)Pre-store picture setting;
14)Able to connect monitoring card to achieve comprehensive monitoring;
15)Comply with RoHS standard;
16)Comply with EU CE-EMC Class B standard.

Recognition of Novastar MRV560 Series Card:

To meet theneeds of different customers, Nova provides more specific models of the products,including standard products in stock, other models need to be customized;

Model

Specification

MRV560-1

Standard model, male connector on top

MRV560-2

Male connector on bottom

MRV560-3

Female connector on top

MRV560-4

Female connector on bottom

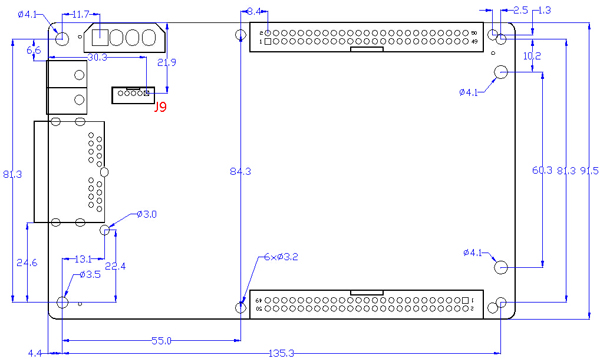

Novastar MRV560-1 EMC LED Screen Display Receiving Card Connect Interface Definition:



J4 definition(MOM interface):

GND

1

2

SPI_CS





SPI_CLK

3

4

SPI_MOSI





CODE0

5

6

H164_CSD





CODE1

7

8

H164_CLK





CODE2

9

10









11

12

CODE3





CODE4

13

14









15

16

SPI_MISO







17

18









19

20

GND





J9 definition(Indicator light Socket):























1

2

3

4

5



STA_LED

LED +/3.3V

PWR_LED -

KEY +

KEY -/GND



J10 definition(Indicator Socket):























1

2

3

4

5

6

KEY +

KEY -

PWR_LED+

PWR_LED-

STA_LED+

STA_LED-
