Meanwell

Meanwell LRS-350-5 5V60A 300W LED Power Supply

$19.00


Информация по уходу

Отображение общей информации о продукте или конкретной информации о продукте с помощью метаполей.

Доставка и доставка

Добавьте некоторую общую информацию о вашей доставке и правилах доставки.

Добавьте выдающееся сообщение для ваших клиентов

 Meanwell
 Meanwell-LRS-350-5
 In stock

Meanwell LRS-350-5 5V60A 300W LED Power Supply Features:

5V  60A 300W

Universal AC input / Full range

Built-in active PFC function, PF>0.95

High efficiency up to 90%

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC Fan with fan speed control function

1U low profile 30mm

LED indicator for power on

2 years warranty

UL  passed



Case:806 Size:215×115×30mm

AC input voltage range---------88-132VAC/ 176-264VAC selected by switch

Input frequency---------------------------------47-63Hz

AC inrush current--------------------------------Cold start,40A/230VAC

DC adjustment range-----------------------------±10% rated output voltage

Line regulation(full load)------------------------≤0.5%

Output over load protection-------110%-150% hiccup mode,auto-recovery

Rise,hold up time--------------------50mS,20mS at full load(typical)

Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min

Working temperature----- -10~+40℃@100%,+60℃@60% load

Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)

Safety standards------Design refer to GB4943,UL60950-1,EN60950-1

EMC standards------- Design refer to GB9254,EN55022 class A

Cooling method---------------------Forced air cooing by built-in DC fan

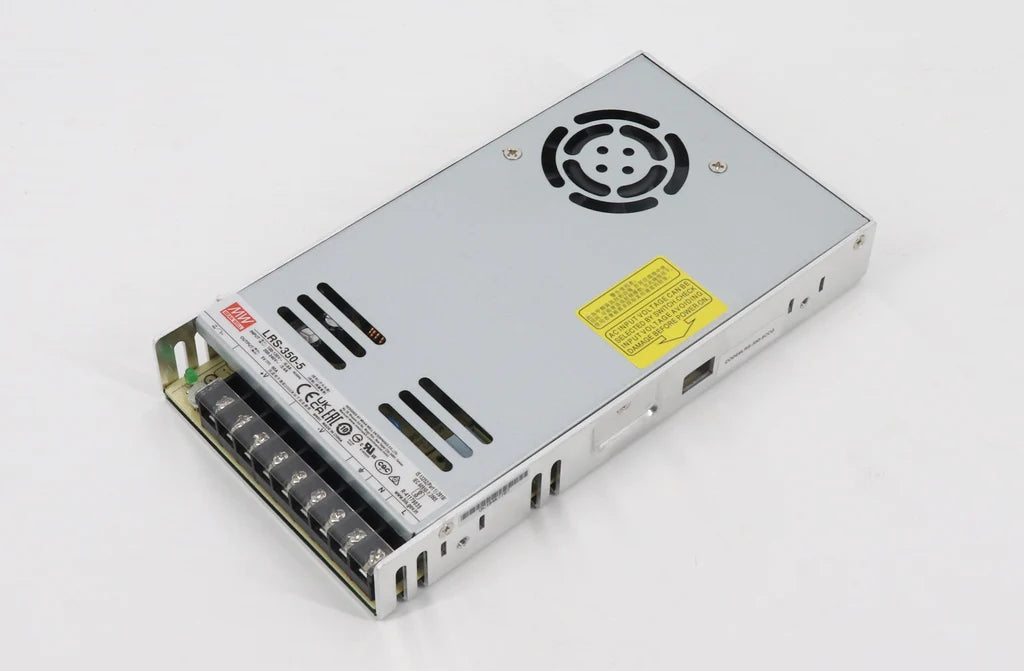

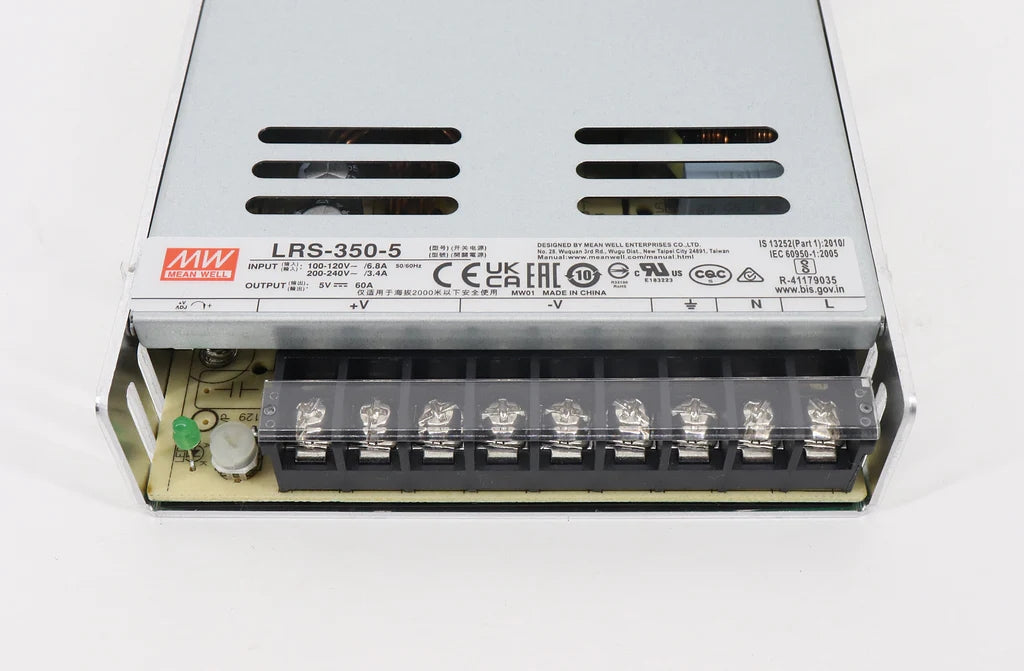

More Pictures of Meanwell LRS-350-5 5V60A 300W LED Power Supply
