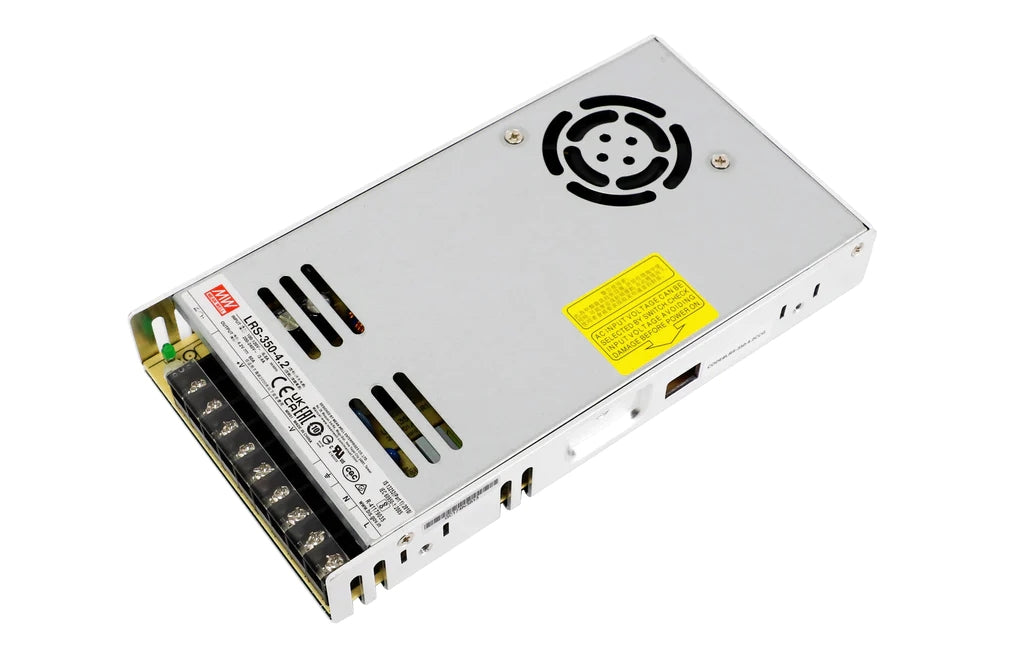

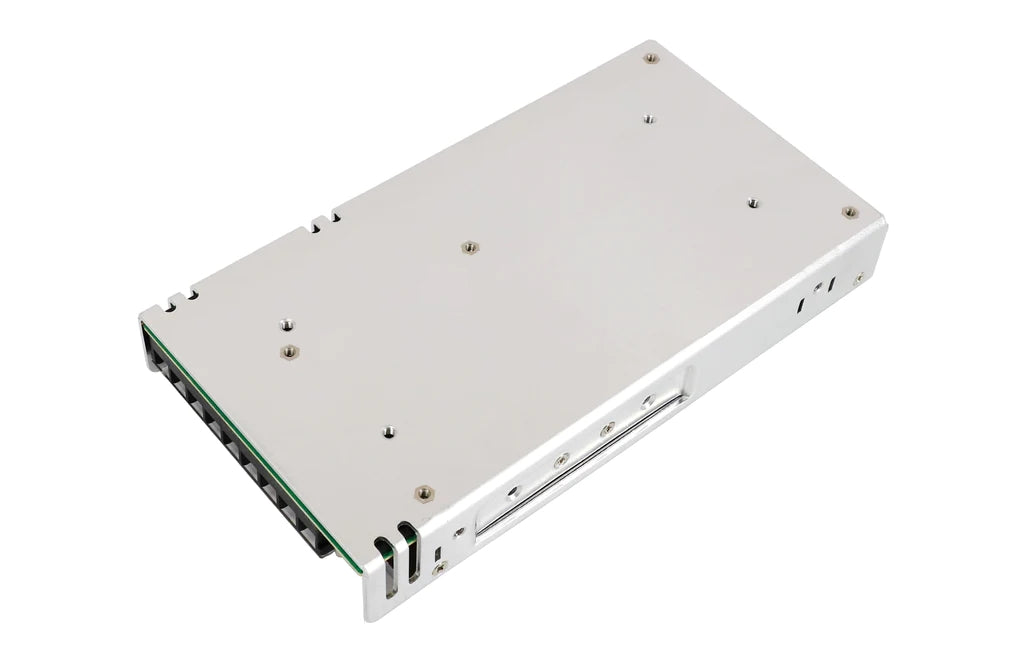

Meanwell LRS-350-4.2 4.2V60A 252W Input Voltage Selectable LED Power Supplies
Meanwell LRS-350-4.2 4.2V60A 252W Input Voltage Selectable LED Power Supplies is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Информация по уходу
Информация по уходу
Отображение общей информации о продукте или конкретной информации о продукте с помощью метаполей.
Доставка и доставка
Доставка и доставка
Добавьте некоторую общую информацию о вашей доставке и правилах доставки.
Meanwell LRS-350-4.2 4.2V60A 252W Input Voltage Selectable LED Powe...
Meanwell LRS-350-4.2 4.2V60A 252W Input Voltage Selectable LED Power Supplies Description:
In addition to the high efficiency up to 89%, with the built-in long life fan LRS-350 can work under -25~+70℃ with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allowsthe end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1. LRS-350 series serves as a high price-to-performance power supply solution for various industrial applications.
Meanwell LRS-350-4.2 4.2V60A 252W Input Voltage Selectable LED Power Supplies Parameters:
|
MODEL |
LRS-350-4.2 |
|
|
OUTPUT |
DC VOLTAGE |
4.2V |
|
RATED CURRENT |
60A |
|
|
CURRENT RANGE |
0 ~ 60A |
|
|
RATED POWER |
252W |
|
|
RIPPLE & NOISE (max.) Note.2 |
150mVp-p |
|
|
VOLTAGE ADJ. RANGE |
3.6 ~ 4.4V |
|
|
VOLTAGE TOLERANCE Note.3 |
±4.0% |
|
|
LINE REGULATION Note.4 |
±0.5% |
|
|
LOAD REGULATION Note.5 |
±2.5% |
|
|
SETUP, RISE TIME |
1500ms, 50ms/230VAC 1500ms,50ms/115VAC at full load |
|
|
HOLD UP TIME (Typ.) |
16ms/230VAC 12ms/115VAC at full load |
|
|
INPUT |
VOLTAGE RANGE |
90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) |
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
|
EFFICIENCY (Typ.) |
81.50% |
|
|
AC CURRENT (Typ.) |
6.8A/115VAC 3.4A/230VAC |
|
|
INRUSH CURRENT (Typ.) |
60A/115VAC 60A/230VAC |
|
|
LEAKAGE CURRENT |
<2mA / 240VAC |
|
|
PROTECTION |
OVER LOAD |
110 ~ 140% rated output power |
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
||
|
|
4.6 ~ 5.4V |
|
|
|
||
|
OVER VOLTAGE |
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|
|
OVER TEMPERATURE |
Hiccup mode, recovers automatically after fault condition is removed |
|
|
ENVIRONMENT |
WORKING TEMP. |
RTH3≧50℃ FAN ON, ≦40℃ FAN OFF |
|
WORKING HUMIDITY |
-25 ~ +70℃ (Refer to "Derating Curve") |
|
|
STORAGE TEMP., HUMIDITY |
20 ~ 90% RH non-condensing |
|
|
TEMP. COEFFICIENT |
-40 ~ +85℃, 10 ~ 95% RH |
|
|
VIBRATION |
±0.03%/℃ (0 ~ 50℃) |
|
|
SAFETY |
SAFETY STANDARDS |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
|
WITHSTAND VOLTAGE |
UL60950-1 approved |
|
|
ISOLATION RESISTANCE |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|
|
OTHERS |
MTBF |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH |
|
DIMENSION |
327.9K hrs min. MIL-HDBK-217F (25℃) |
|
|
PACKING |
215*115*30mm (L*W*H) |
|
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. |
|
|
|
||
|
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. |
||
|
|
||
|
3. Tolerance : includes set up tolerance, line regulation and load regulation. |
||
|
|
||
|
4. Line regulation is measured from low line to high line at rated load. |
||
|
|
||
|
5. Load regulation is measured from 0% to 100% rated load. |
||
|
|
||
|
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up |
||
|
|
||
|
time. |
||
|
|
||
|
7.The 150% peak load capability is built in for up to 1 second for 12~48V.LRS-350 will enter hiccup mode if the peak load is delivered |
||
|
|
||
|
for over 1 second and will recover once it resumes to the rated current level(115VAC/230VAC). |
||
|
|
||
|
8. The ambient temperature derating of 5℃/1000m is needed for operating |
||
|
|
||
|
altitude greater than 2000m(6500ft).EMC directives. For guidance on how to perform |
||
|
|
||
|
these EMC tests, please refer to “EMI testing of component power supplies.” |
||
|
|
||
|
(as available on http://www.meanwell.com) |
||
