Meanwell

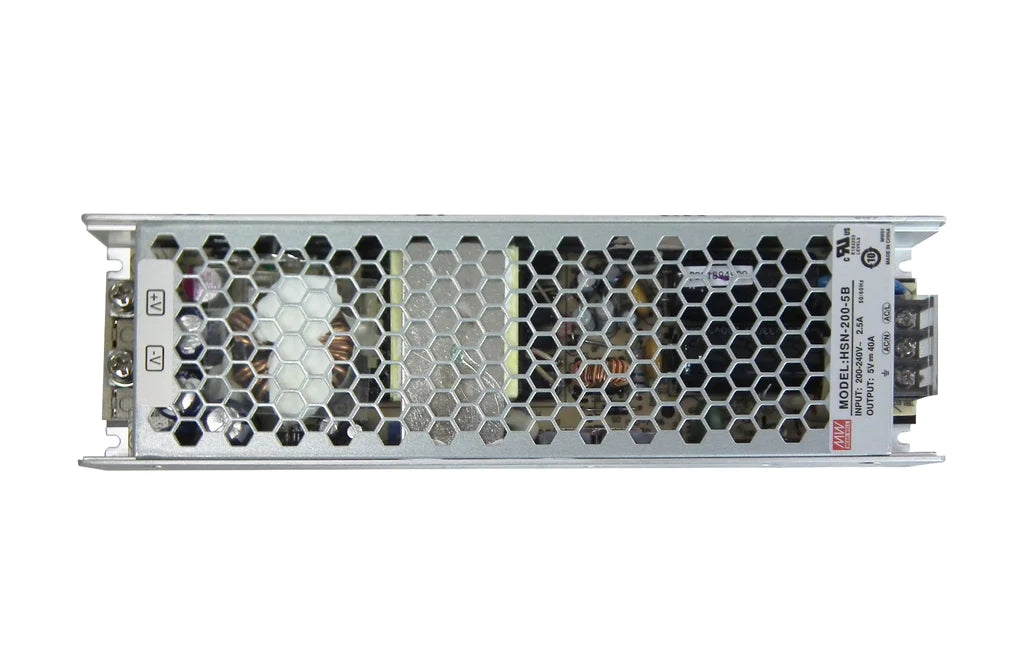

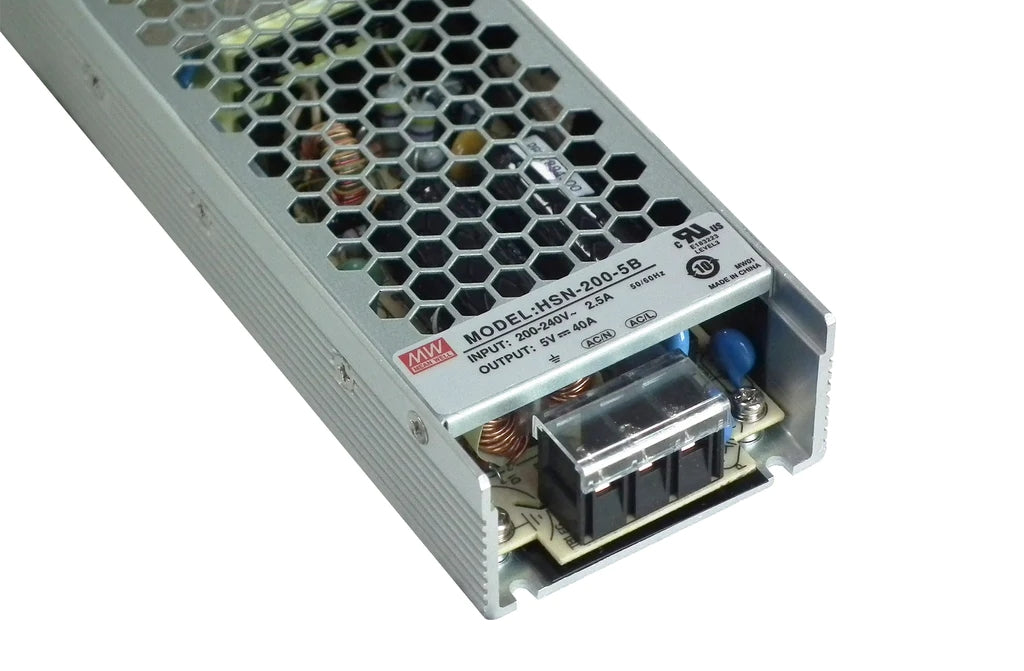

Meanwell HSN-200-5B Switching Power supply

$27.00


Информация по уходу

Отображение общей информации о продукте или конкретной информации о продукте с помощью метаполей.

Доставка и доставка

Добавьте некоторую общую информацию о вашей доставке и правилах доставки.

Добавьте выдающееся сообщение для ваших клиентов

 Meanwell
 Meanwell-HSN-200-5B
 In stock

MEAN WELL HSN-200-5B LED Switch Power Supply FEATURES:







MEAN WELL HSN-200 Power Supply is a ultra low profile slender sign panel power supply with up to 200W rated-power. The HSN-200 features two types with different input range: A-Type accepts 90~132VAC and B-Type accepts 180~264VAC. The output side supplies 4.2VDC and 5VDC, making HSN-200 work with both old and new generations of sign panel driver ICs, greatly raising the system design flexibility. This series incorporates non-PFC design, achieving a high efficiency up to 88% with a low cost, and the system performance is enhanced so both energy saving and electricity expense reduction can be fulfilled.







MEAN WELL HSN-200-5B LED Switch Power Supply Features



31mm ultra low profile, slim design

Input range: A-Type, 90~132VAC; B-Type, 180~264VAC

Rated power up to 200W (150W for 90~132VAC input models)

High working efficiency up to 88%

Fanless design, cooling by conduction via bottom plate (minimal size 450 x 450 x 3 mm)

-25°C ~ +70°C working temperature

(HSN-200 must be firmly mounted on an aluminum plate or the cabinet of sign panel module)

Low leakage current <1mA

Protections: short circuit / overload / over voltage / over temperature

Dimension (LxWxH): 210x 62x 31 mm





MEAN WELL HSN-200-5B LED Switch Power Supply Applications



Indoor and Outdoor LED Electronic Signage

LED Moving Signs

LED TV Walls







MEAN WELL HSN-200-5B LED Switch Power Supply Parameter:





Part Number

Output Voltage-Channel 1

Output Power

Input Voltage

Output Current-Channel 1

HSN-200-4.2B

4.2 VDC

168 W

180 VAC to 264 VAC/254 VDC to 373 VDC

40 A

HSN-200-4.2A

4.2 VDC

126 W

90 VAC to 132 VAC

30 A

HSN-200-5B

5 VDC

200 W

180 VAC to 264 VAC/254 VDC to 373 VDC

40 A

HSN-200-5A

5 VDC

150 W

90 VAC to 132 VAC

30 A











Download Specification
