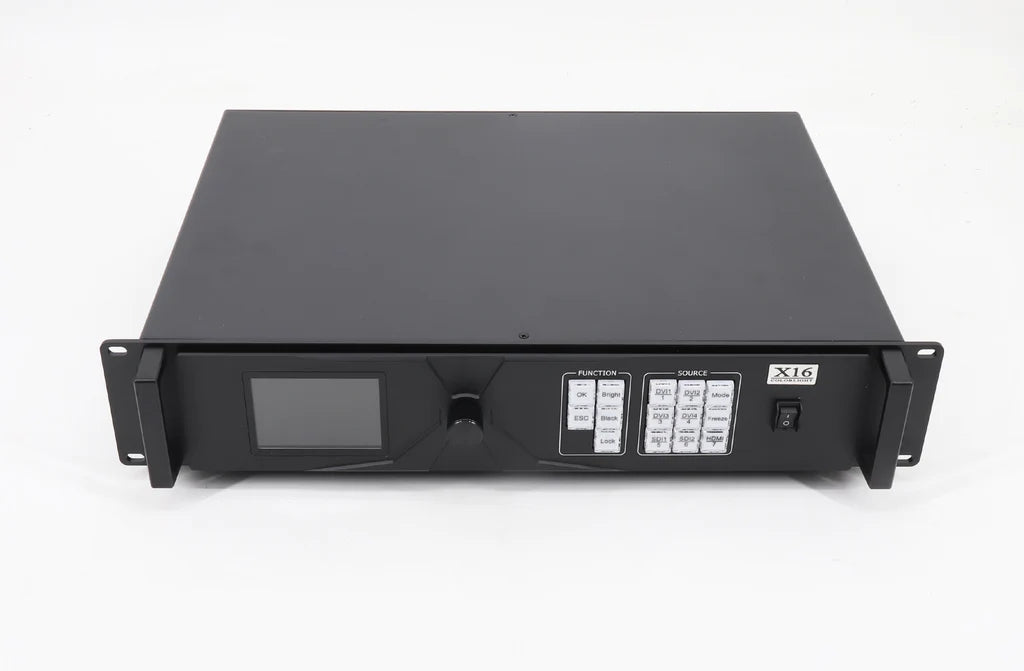

Colorlight X16 Professional LED Wall Panel Controller Box
X16 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs, in which the maximum input resolution is 4K@4096×2160 pixels. It supports digital ports (HDMI, DVI, SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and seven-pictures displays.
Colorlight X16 Professional LED Wall Panel Controller Box Parameter:
|
Input Interface |
|
|
HDMI 2.0 |
HDMI 2.0 Input |
|
EIA/CEA-861 Standard, in accordance with HDMI 2.0 standard, supports 4096×2160@60Hz, supports HDCP |
|
|
DVI |
4 DVI inputs |
|
VESA Standard (support 1920×1200@60Hz), supports HDCP |
|
|
SDI |
2 SDI-3G inputs, 1920×1080P |
|
Output Interface |
|
|
Port1-16 |
RJ45, 16 Gigabit Ethernet outputs |
|
Controlling Interface |
|
|
LAN |
Network control (communication with PC, or access network) |
|
USB_OUT |
USB output, cascading with the next controller |
|
USB_IN |
USB input, which connects with PC to configure parameters |
|
Genlock |
Genlock signal input ensures synchronism of display image |
|
Genlock Loop |
Genlock synchronous signal loop output |
|
4K Input Boards (Optional) |
|
|
X16 (Standard) |
1×HDMI 2.0 + 4×DVI |
|
X16B (Customized) |
8×DVI |
|
X16C (Customized) |
2×HDMI 2.0 |
|
Specifications |
|
|
Size |
2U standard box |
|
Input voltage |
AC 100~240V |
|
Rated Power Consumption |
80W |
|
Working Temperature |
-20~60℃ |
- Supports various digital signal ports, including 1×HDMI 2.0, 4×DVI, 2×SDI
- Supports input resolutions up to 4096×2160@60Hz
- Loading capacity: 8.88 million, maximum width/height: 8192 pixels
- Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution
- Supports seven-pictures displays, the location and size can be adjusted freely
- Supports HDCP 2.2
- Dual USB2.0 for high speed configuration and easy cascading among controllers
- Supports brightness and chromaticity adjustments
- Supports improved gray-scale performance at low brightness
- Compatible with all receiving cards, multifunction cards, and optical fiber transceivers of Colorlight
