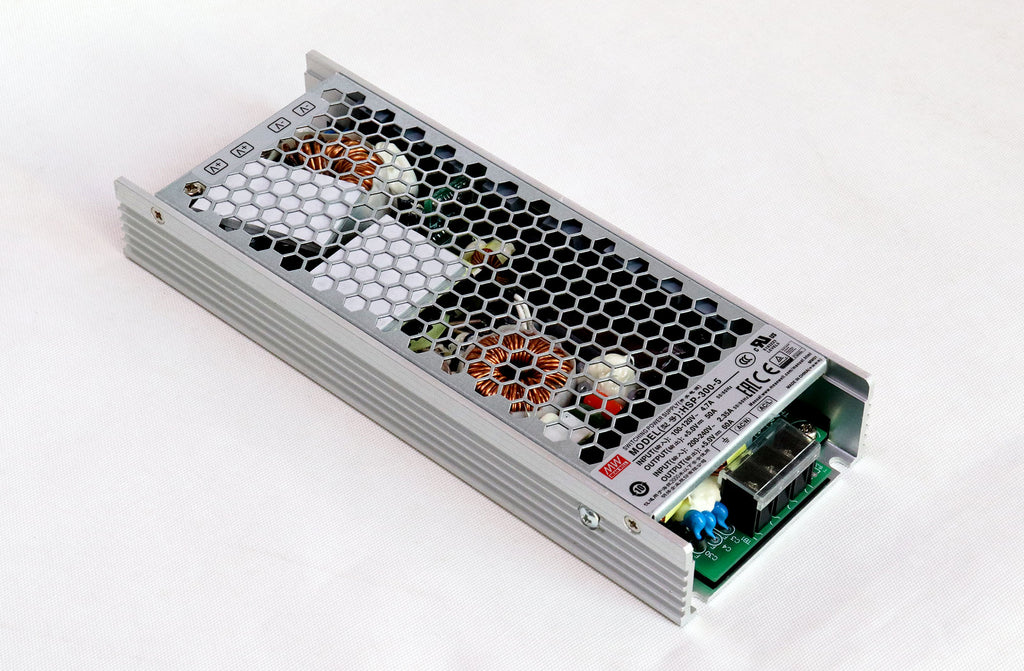

Meanwell HSP-300-5 5V60A 300W LED Sign EMC Power Supply
Meanwell HSP-300-5 5V60A 300W LED Sign EMC Power Supply Features:
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Built-in active PFC function
- Low leakage current<1mA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Low profile:31mm
- Conformal coated
- LED indicator for power on
- Suitable for high efficiency moving sign applications
- 3 years warranty
Meanwell HSP-300-5 5V60A 300W LED Sign EMC Power Supply Parameter:
|
MODEL |
HSP-300-5 |
|
|
OUTPUT |
DC VOLTAGE |
5V |
|
RATED CURRENT |
60A |
|
|
CURRENT RANGE |
0 ~ 60A |
|
|
RATED POWER |
300W |
|
|
RIPPLE & NOISE (max.) Note.2 |
150mVp-p |
|
|
VOLTAGE ADJ. RANGE |
4.5~5.5V |
|
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
|
|
LINE REGULATION Note.4 |
±0.5% |
|
|
LOAD REGULATION Note.5 |
±1.0% |
|
|
SETUP, RISE TIME |
2000ms, 100ms/230VAC |
|
|
3000ms, 100ms/115VAC at full load |
||
|
HOLD UP TIME (Typ.) |
8ms/230VAC 8ms/115VAC at full load |
|
|
INPUT |
VOLTAGE RANGE |
180 ~ 264VAC 254 ~ 370VDC |
|
or 90~135VAC 127~190VDC |
||
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
|
POWER FACTOR (Typ.) |
PF≥0.93/230VAC |
|
|
PF ≥0.98/115VAC at full load |
||
|
EFFICIENCY (Typ.) |
87% |
|
|
AC CURRENT (Typ.) |
4.7A/115VAC 2.35A/230VAC |
|
|
INRUSH CURRENT (Typ.) |
Cold start 30A/115VAC 60A/230VAC |
|
|
LEAKAGE CURRENT |
<1mA / 240VAC |
|
|
PROTECTION |
OVER LOAD |
105~150% rated output power |
|
Protection type : Hiccup mode, |
||
|
recovers automatically after fault |
||
|
condition is removed |
||
|
|
5.7 ~ 7.0V |
|
|
OVER VOLTAGE |
Protection type : Shut down o/p voltage, |
|
|
re-power on to recover |
||
|
OVER TEMPERATURE |
Shut down o/p voltage, recovers automatically |
|
|
after fault condition is removed |
||
|
ENVIRONMENT |
WORKING TEMP. |
-30 ~ +70℃(Refer to "Derating Curve") |
|
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|
|
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH |
|
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 60℃) |
|
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. |
|
each along X, Y, Z axes |
||
|
SAFETY& EMC |
SAFETY STANDARDS |
UL60950-1,EN60950-1,CCC GB4943 approved |
|
|
WITHSTAND VOLTAGE |
I/P-O/P:3.0KVAC I/P-FG:2.0KVAC |
|
O/P-FG:0.5KVAC |
||
|
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG: |
|
100M Ohms/500VDC/25℃/ 70%RH |
||
|
|
EMC EMISSION |
Compliance to EN55022 (CISPR22),GB9254, |
|
Class B, EN61000-3-2,-3, |
||
|
|
GB17625.1 |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11; |
|
EN55024, light industry level |
||
|
|
(surge 4KV), criteria A |
|
|
OTHERS |
MTBF |
263.2K hrs min. MIL-HDBK-217F (25℃) |
|
|
DIMENSION |
210*81*31mm (L*W*H) |
|
|
PACKING |
0.8kg; 15pcs/ 12.1kg/ 0.7CUFT |
Download Specification
