Magnimage LED-780H 4K High Definition Video Processor

$1,403.00


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Brand: Magnimage

Product Code: MAGNIMAGE-LED-780H

Availability: In stock



Magnimage LED-780H 4K High Definition Video Processor LED-780H New 4K Input Board

      In order to meet the application needs from customers, Magnimage has introduced 4K extended input boards, HDMI 1.4 and DP1.1.

LED-780H

1:HDMI 1.4 extended input board

(1:Each board has 1 HDMI port and 1 DVI port;

(2:Either HDMI or DVI port can be used during the call;

(3:Supports EDID, the maximum resolution can be 3840x1080@60Hz or 3840x2160@30Hz.



2:DP 1.1 extended input board

(1:Each board has 1 DP and 1 DVI(HDMI1.4 standard)port;

(2:Either DP or DVI port can be used during the call;

(3:Supports EDID, the maximum resolution can be 3840x1080@60Hz or 3840x2160@30Hz.



Magnimage LED-780H 4K High Definition Video Processor Input Signal Backup Function:

       This function is designed for live events that may have the problem of signal delay, image pause, blurred screen, or black screen.

There are automatic backup and manual backup.

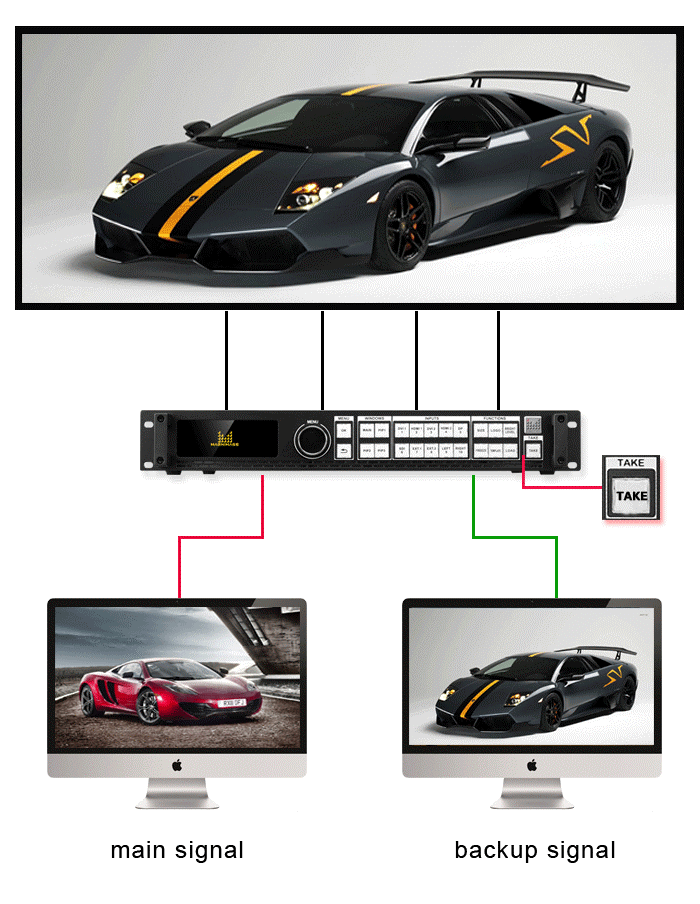

Automatic Backup:

As the above image shows, the machine will automatically switch to the backup signal once the main signal pauses. No black screen happens.



Manual Backup:

As the above image shows, if there is a failure of input source, we can press the TAKE key to switch to the backup signal. In this case, the LED screen will play the video in a smooth way to ensure the event’s running.



Mosaic Application of 780H

       When doing a big screen show, there are lots of demands like PIP, switching, mosaic, multiviewing, and 780H fits all these demands with a easy operating.







Using 780H, you will get a simple and quick experience in all splicing applications. Here are some examples.

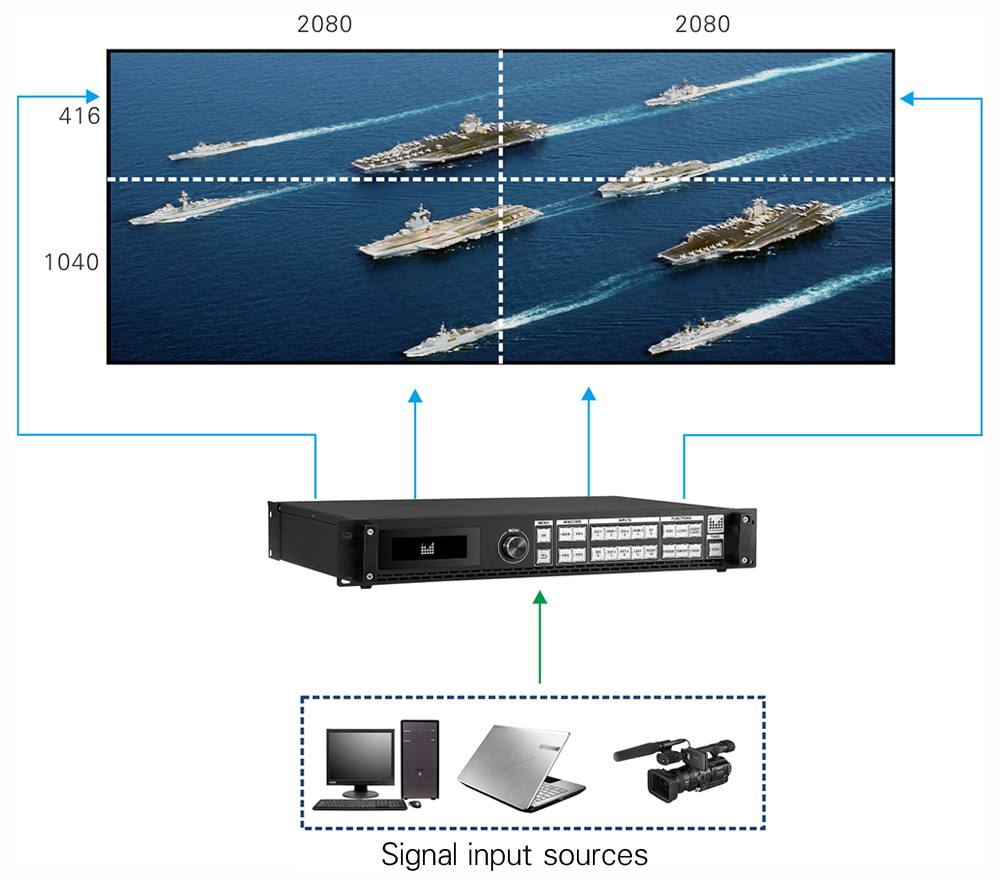

  1. Mosaic from one single input source:

P4 LED screen, screen size is 20 m x 7 m, total resolution is 4160 x 1456, 4 areas mosaic.

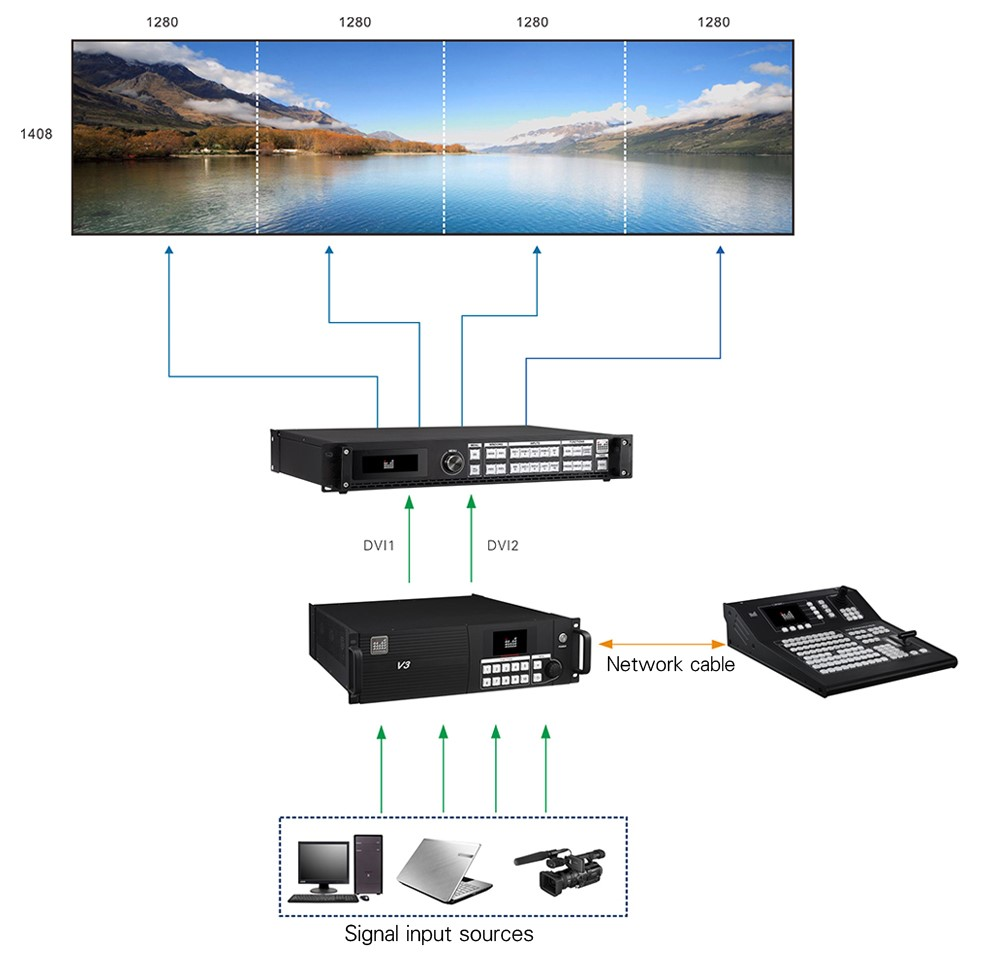

  1. Mosaic from two input sources:

P3 LED screen, screen size is 20 m x 5.5 m, total resolution is 5120 x 1408, 4 areas mosaic.

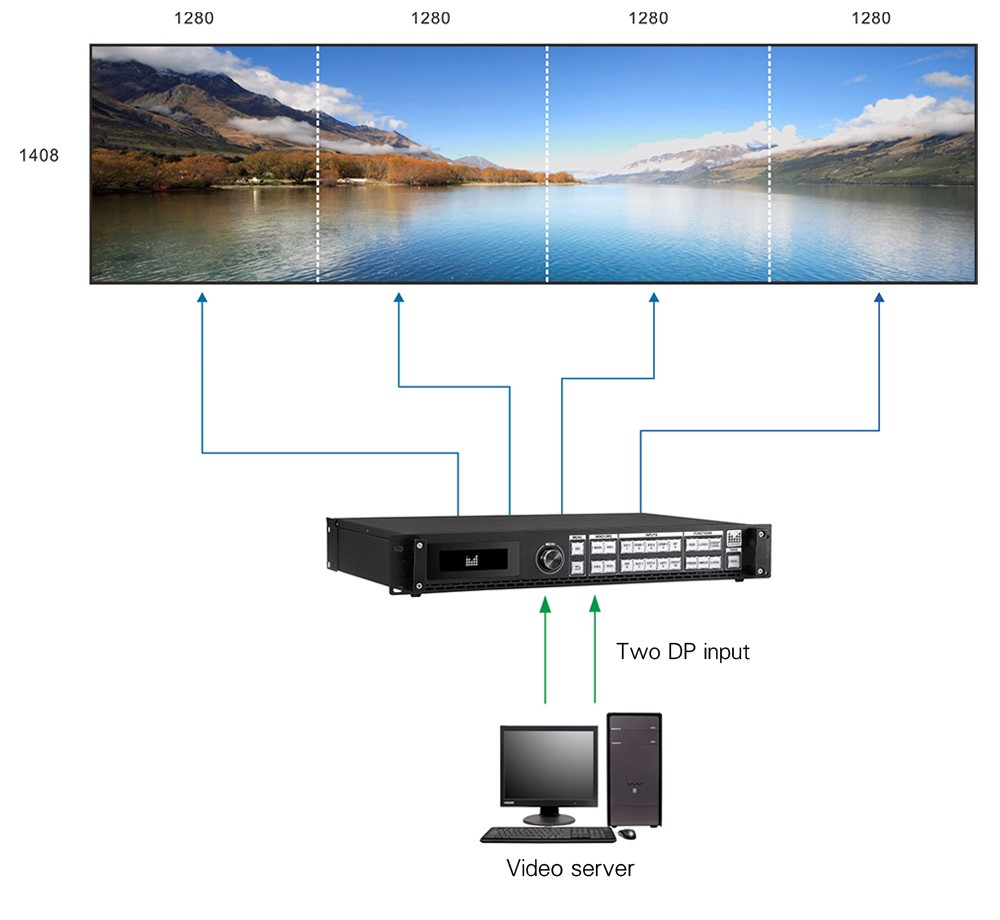

  1. Mosaic from multiple input sources

P3 LED screen, screen size is 20 m x 5.5 m, total resolution is 5120 x 1408, 4 areas mosaic.



This is how 780H accessible to mosaic demand.



4 steps to finish mosaic setting:

1、Enter the "Mosaic Setting" and select "4 panels"

2、Choose the input source

3、Set the "Output Resolution" and "Output Window"

4、Select the “Auto Arrangement”





For simple and stable mosaic application, 780H is the best choice that you are looking for.



Tips: 780H supports 4 LED screen’s signal backup at the same time!





Download Specification/User manual/Software:

Magnimage LED-780H 4K High Definition Video Processor Specification
Magnimage LED-780H 4K High Definition Video Processor User Manual
Magnimage LED-780H 4K High Definition Video Processor Software
