Lumen C Power 5 with 4096-grade grey-scale, more powerful function with lower price, which make them much higher cost-performance and more competitive in the market.
Lumen C-Power 5 Series Full Color Controller Product Introduction:
C-Power 5series card is the newly released newest full color grey-scale controller of Shenzhen Lumen Electronics Co.,ltd.
C-Power 5series card is more powerful with lower price, which make them much higher cost-performance and more competitive in the market.
C-Power 5series card is with 4096-grade grey-scale, support smart setting, easily to set all kinds of LED display.
C-Power 5series card and C-Power full series products the same, with the same external protocol and secondary development interface.
C-Power 5series card different versions:

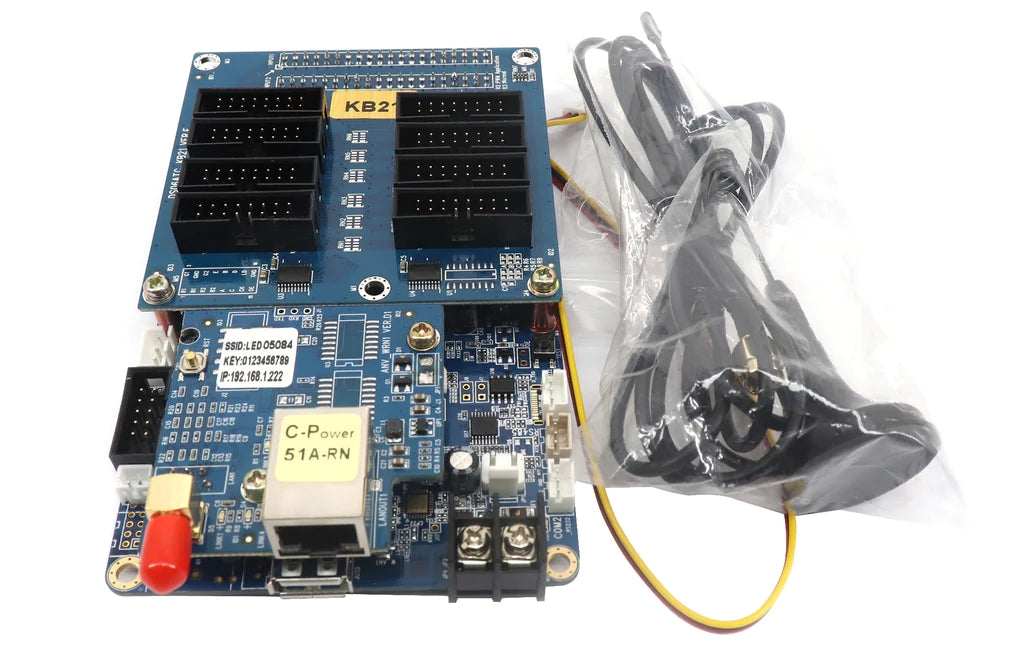

C-Power50A(TCP/IP and USB version) ; C-Power51A(WIFI version);C-Power51A-U(WIFI and USB version);
C-Power51A-RN(WIFI and TCP/IP version); C-Power52A（GPRS version）;
C-Power53A（3G version）;C-Power54A（4G version）
Lumen C-Power 5 Series Full Color Controller Feature and Specification:
|
Control size |
512*256pixels, 4096-grade gray scales |
|
(full , mono/RG color) |
|
|
Memory |
Total size: 256MByte（2Gbit) |
|
Program size: 128MByte |
|
|
Font library space: 128MByte |
|
|
Program |
All programs are transmitted by compression package, and then decompressed on control card. |
|
Supports video program |
|
|
Supports animation(swf,gif) , picture, text, clock, temperature, etc. |
|
|
Text program edit in any language, any font and any size, free adjust |
|
|
Transparent text and clock program can be edit to cover photo or video |
|
|
More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc., |
|
|
With multi-program mode. Stores up to 512 programs to the Led screen. |
|
|
With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance. |
|
|
Supports programs played at the appointed period (for example: week, hour, minute ) |
|
|
Separate window mode |
Supports the segmentation of up to ten playing windows for each program. |
|
Supports playing the content in different formats for each playing window. |
|
|
Affiliated features |
With real-time clock (RTC) management and setting, support digital and analogue clock. |
|
Supports environmental data programs like temperature, etc. |
|
|
Supports sensors installed externally (32-grade brightness) |
|
|
Font library |
128MB font library space |
|
The card can be stored different font library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc., |
|
|
Up to 8 different font libraries can be stored and displayed at the same time |
|
|
We supply font library edit tools and update tools |
|
|
Support Hong Kong supplementary character fonts, Hindi |
|
|
Standard software |
LedCenter V5.3.3 or above |
|
Standard communication mode |
TCP/IP and USB version：TCP/IP network interface、U disk interface |
|
WIFI version：integrate WIFI module |
|
|
GPRS version：integrate GPRS module(Dual-band or Quad-band) |
|
|
All version of the standard RS232/RS485 : maximum baud rate: 115200 |
|
|
InDa remote & keyboard |
Program list edit and display control by infrared controller or keyboard |
|
External communication components |
Supports various wireless communication modes: ZigBee, RF... |
|
Others |
Provides customized development interface andits manual. |
|
Provides demonstration program and source codeforcustomized development |
|
|
Besides, provides “Wireless information issue”version. |
Download Specification
