Huidu

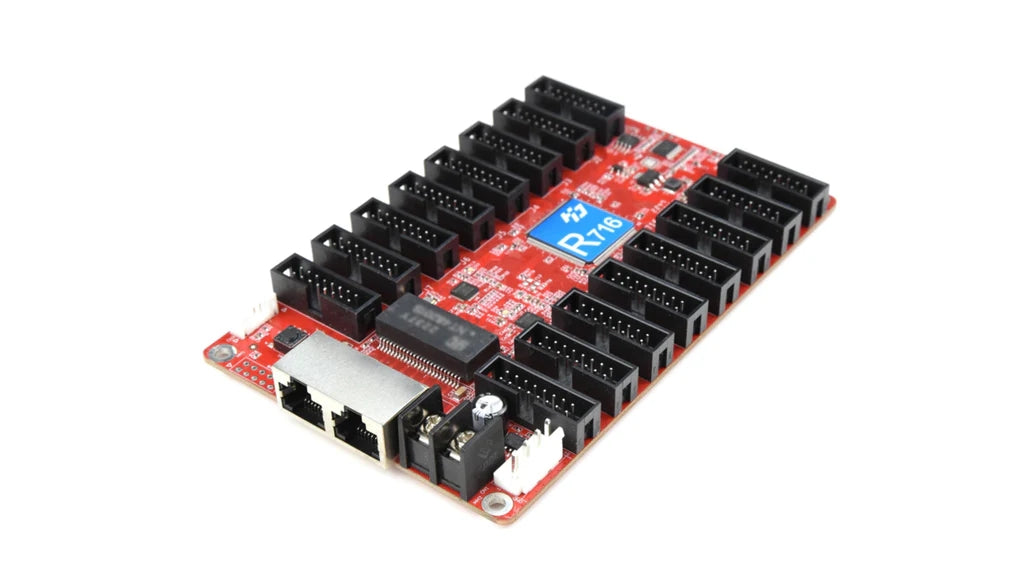

Huidu R716 LED display receiving card

$12.50


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

 Huidu
 R716
 In stock

Huidu HD-R716 R716 Synchronous control system and asynchronous control syste

LED receiving card Parameters Table:

function item

parameter

Support sending type

Support synchronous and asynchronous dual-mode play box, asynchronous sending card, synchronous sending card and two-in-one

A video processor.

Support mods

Support all conventional chip modules; support mainstream PWM chip modules

scanning method

Support any scan mode from static to 1/128 scan, support snapshot and empty point settings

ommunication mode

Gigabit Ethernet port

load range

Maximum load: 320,000 points

Conventional chip 160*1024, 256*640

PWM chip 320*1024, 256*1280, 512*640

Note: The actual load is related to the number of interfaces/module resolution

Multi-card connection

Receiving cards can be sorted arbitrarily, nanosecond-level synchronization

grayscale

Support 256~65536 levels

smart settings

Smart settings can be completed in a few simple steps, and any routing can be matched through the screen routing settings

Display unit board in line mode

test function

The receiving card integrates the screen test function to test the brightness uniformity of the display screen and the display screen Module flatness

communication distance

Within 80 meters of Category 5e and Category 6 network cables

interface

2 5V power ports, 2 Gigabit Ethernet ports, 16 groups of HUB75E ports

Input voltage

4.0V-5.5V

Working power

5 watts





Download Specification:

Huidu HD-R716 R716 Synchronous control system and asynchronous control system LED receiving card Specification
